Servomptors

ENGINEERING → Electrical And Electronics Engineering → Control Systems → CS Notes-1

Read handwritten notes for Servomptors. This chapter contains 8 pages of handwritten study materials.

8 Total Pages

100% Free Access

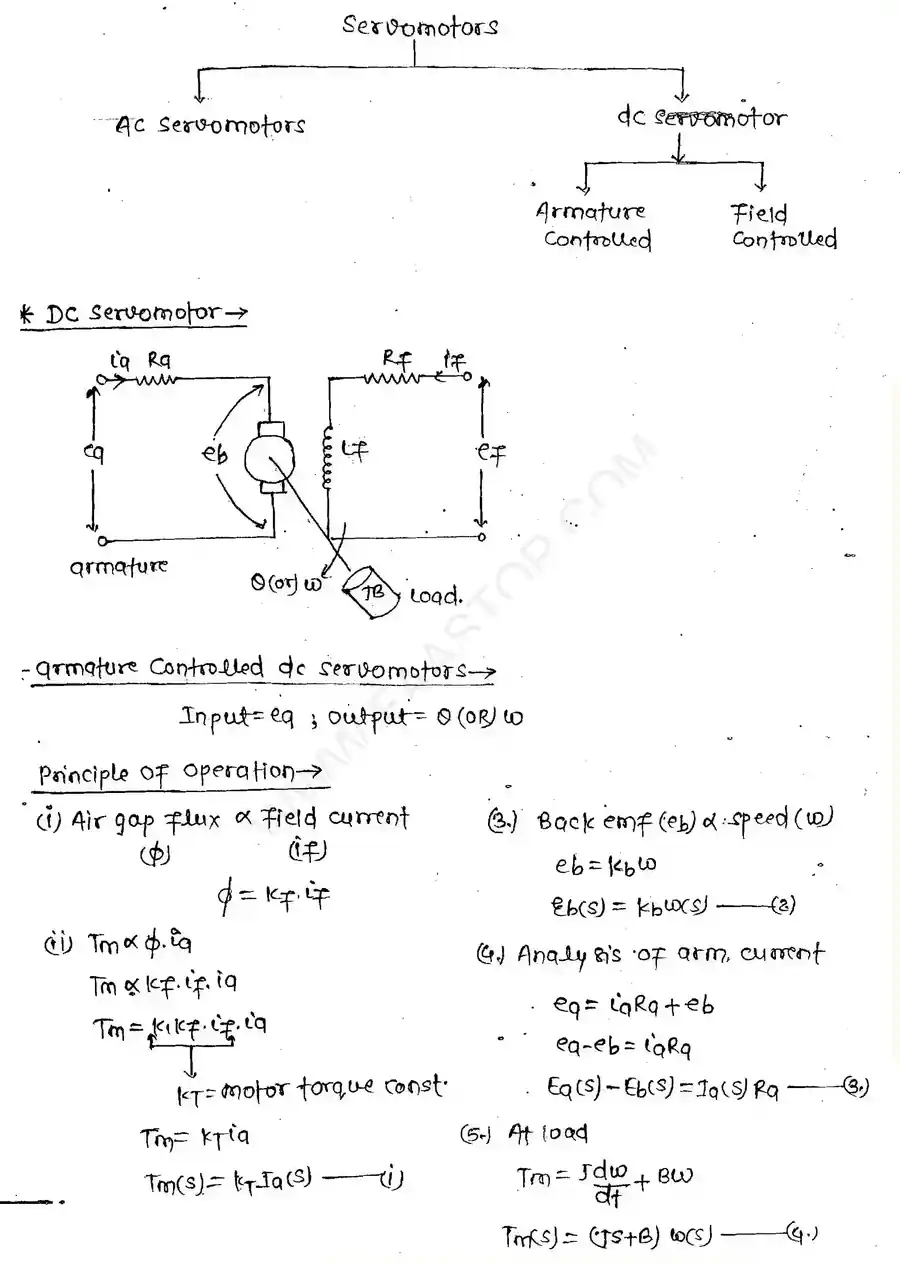

Page 1 of Servomptors

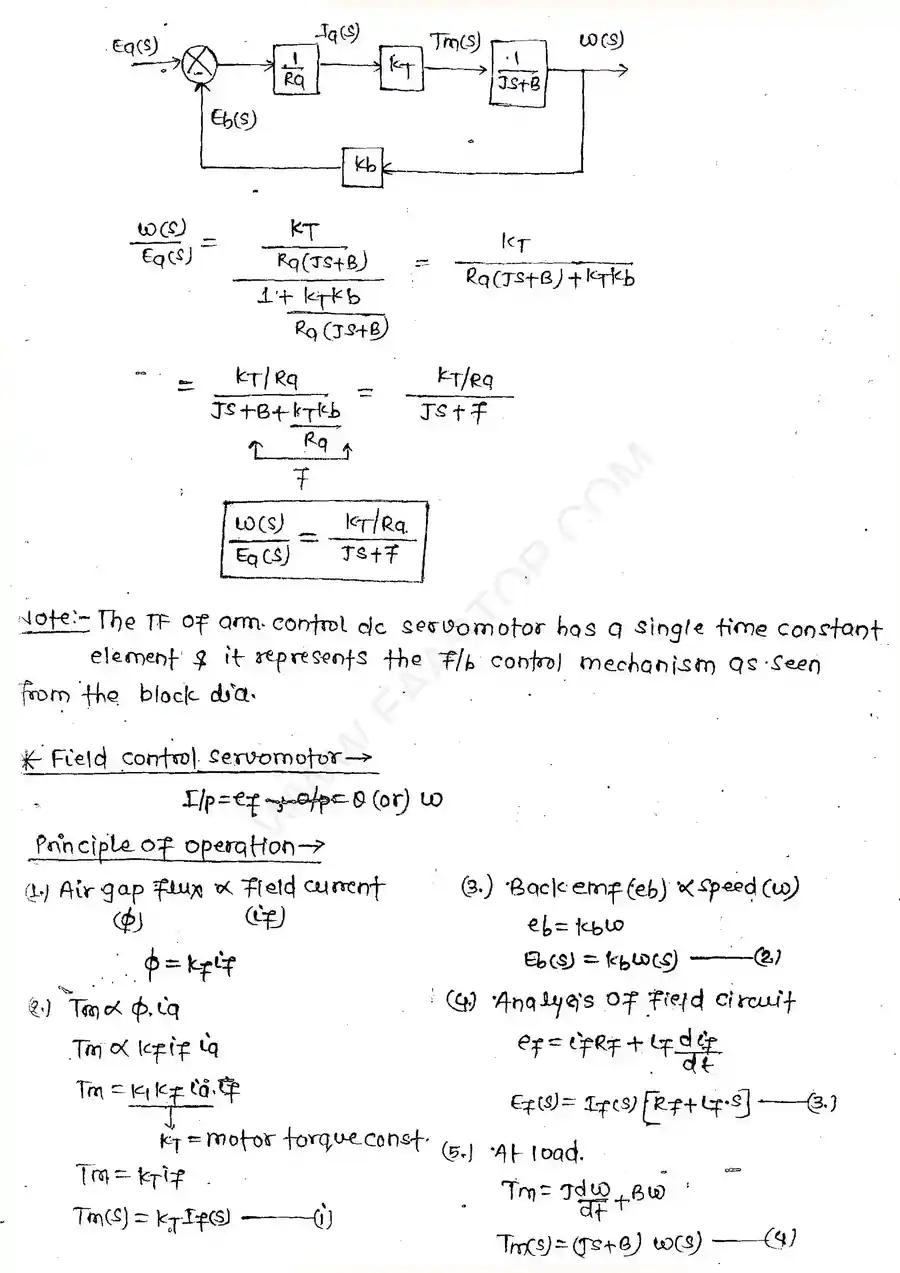

Page 2 of Servomptors

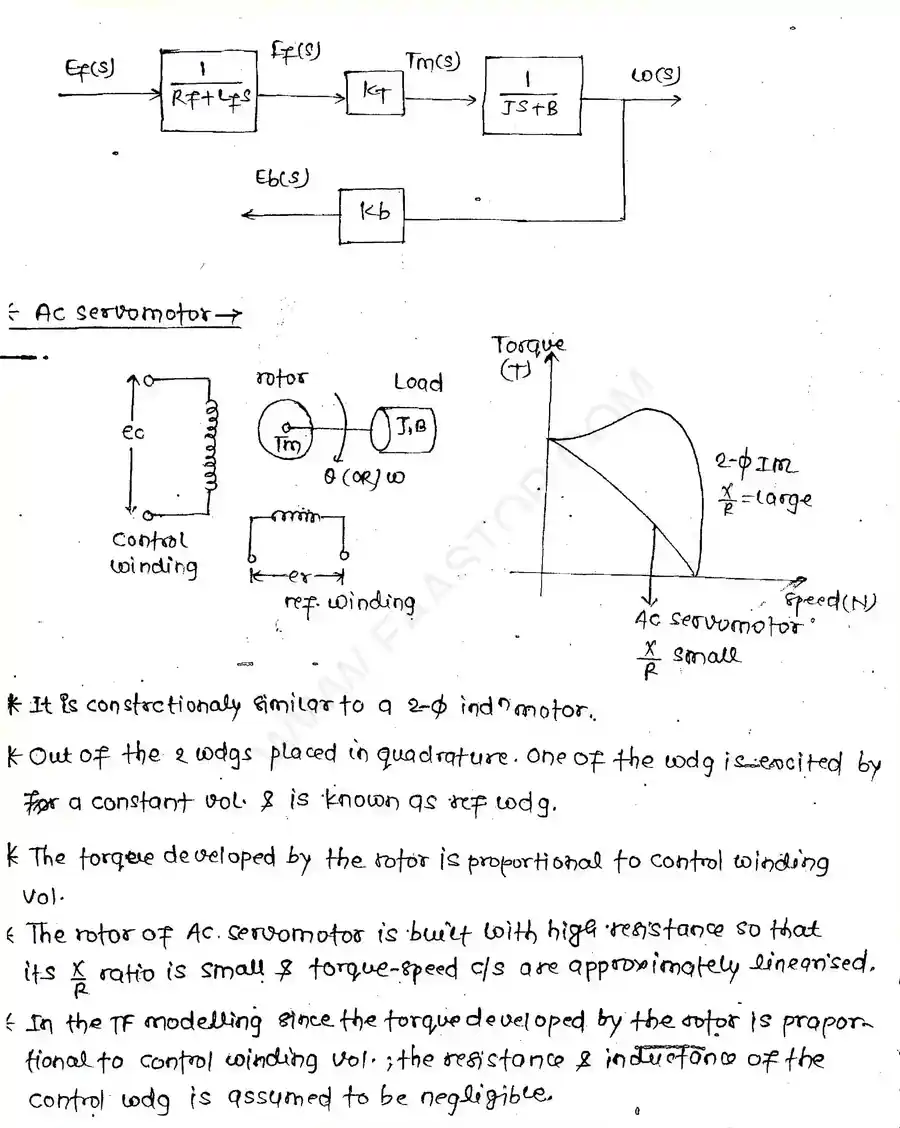

Page 3 of Servomptors

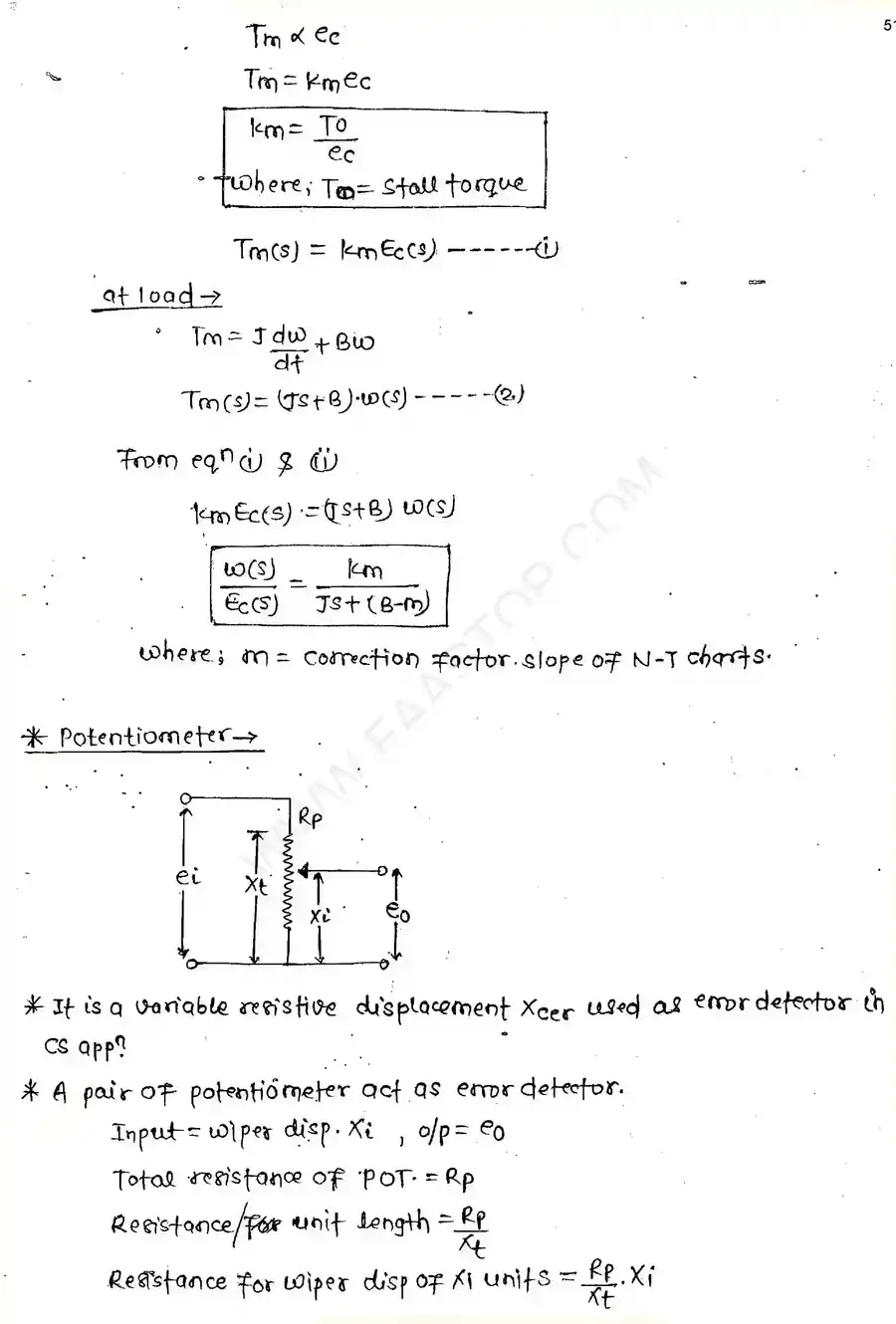

Page 4 of Servomptors

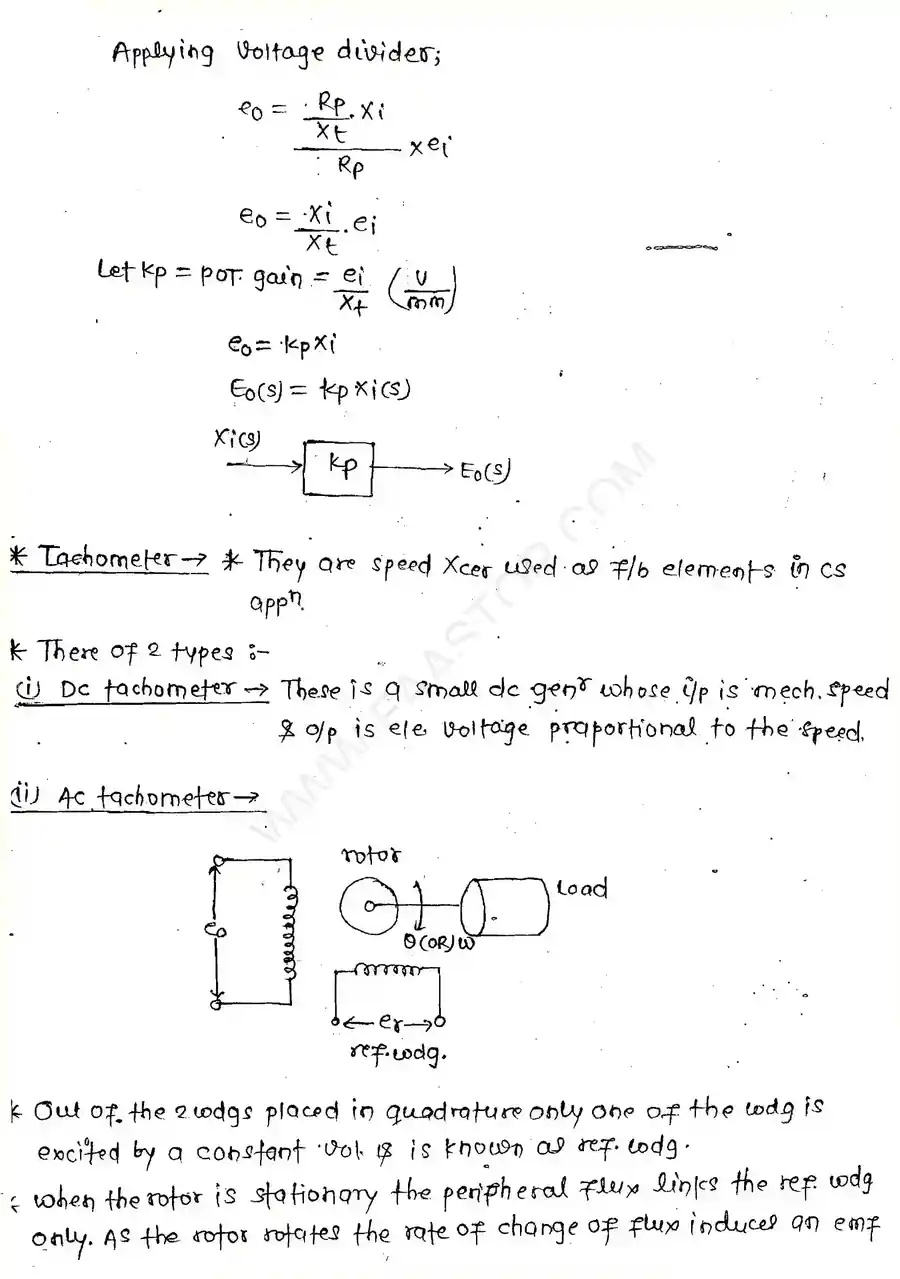

Page 5 of Servomptors

Page 6 of Servomptors

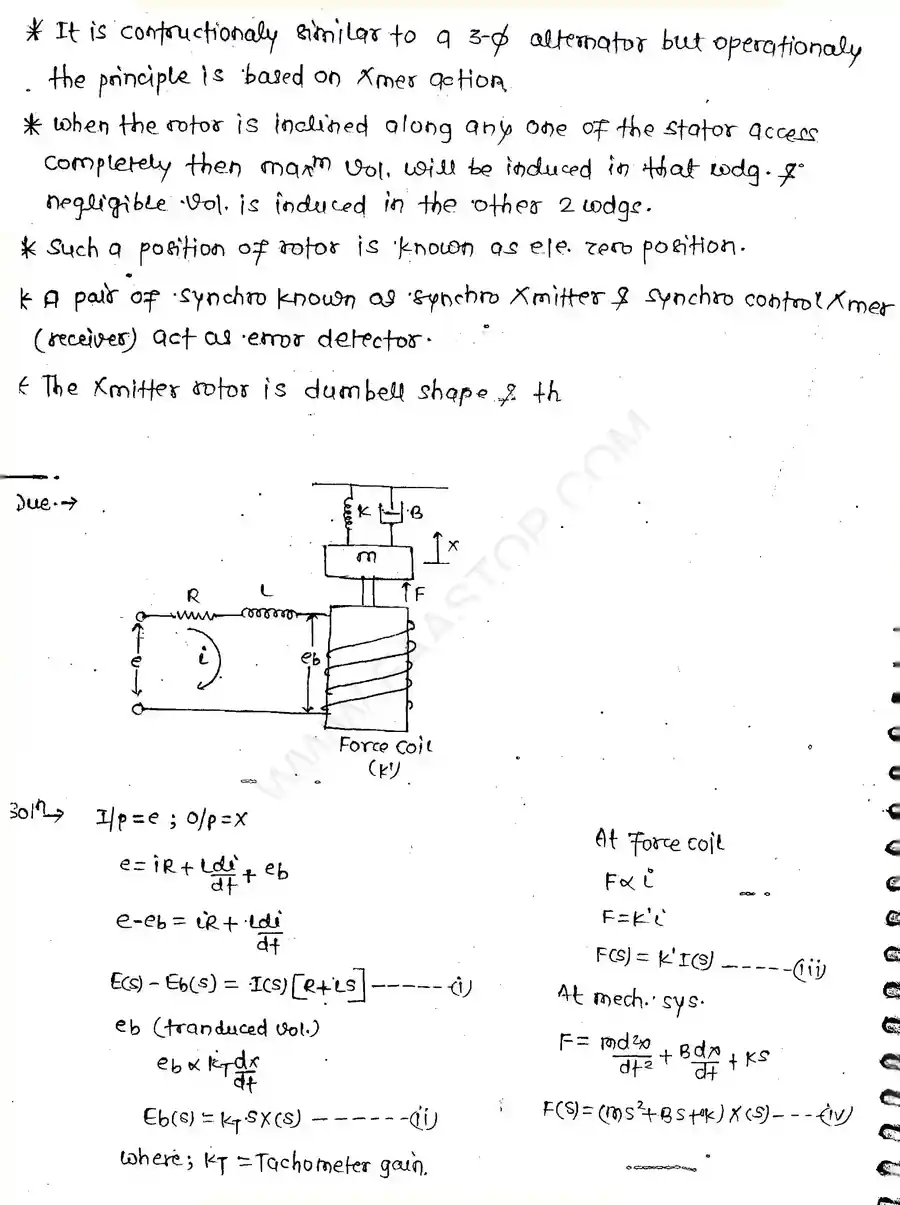

Page 7 of Servomptors

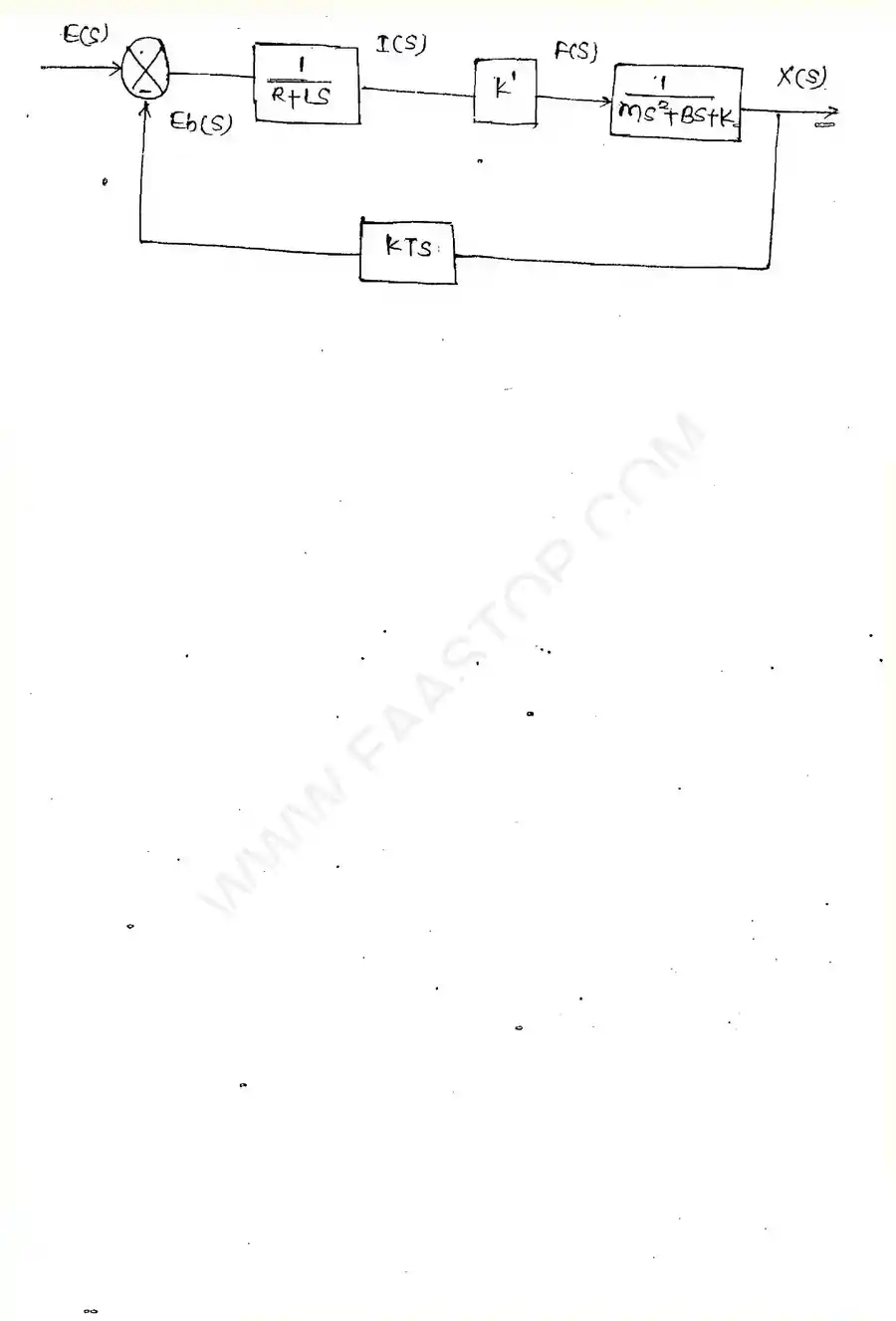

Page 8 of Servomptors
