Block Diagram and Signal flow graph

ENGINEERING → Electrical And Electronics Engineering → Control Systems → CS Notes-1

Read handwritten notes for Block Diagram and Signal flow graph. This chapter contains 13 pages of handwritten study materials.

13 Total Pages
100% Free Access

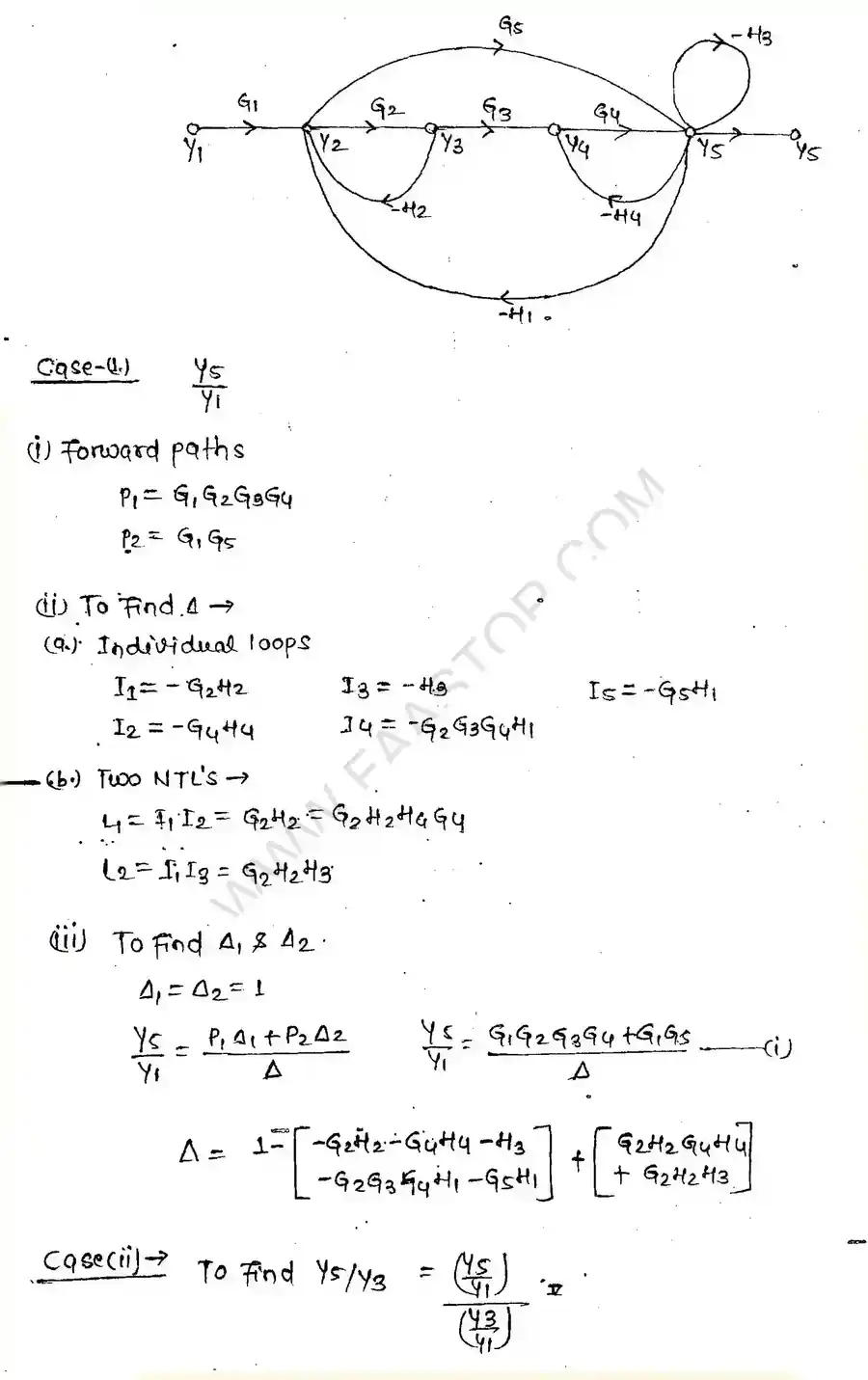

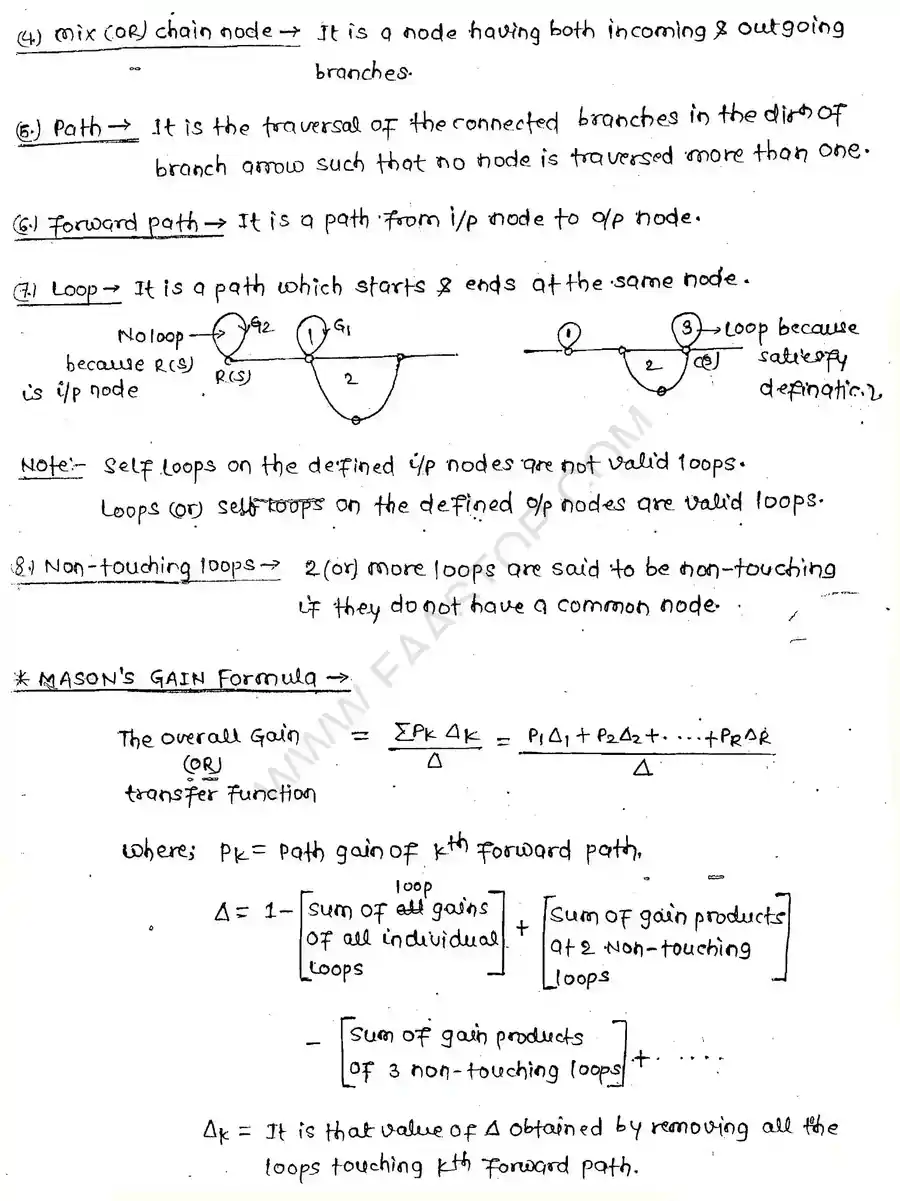

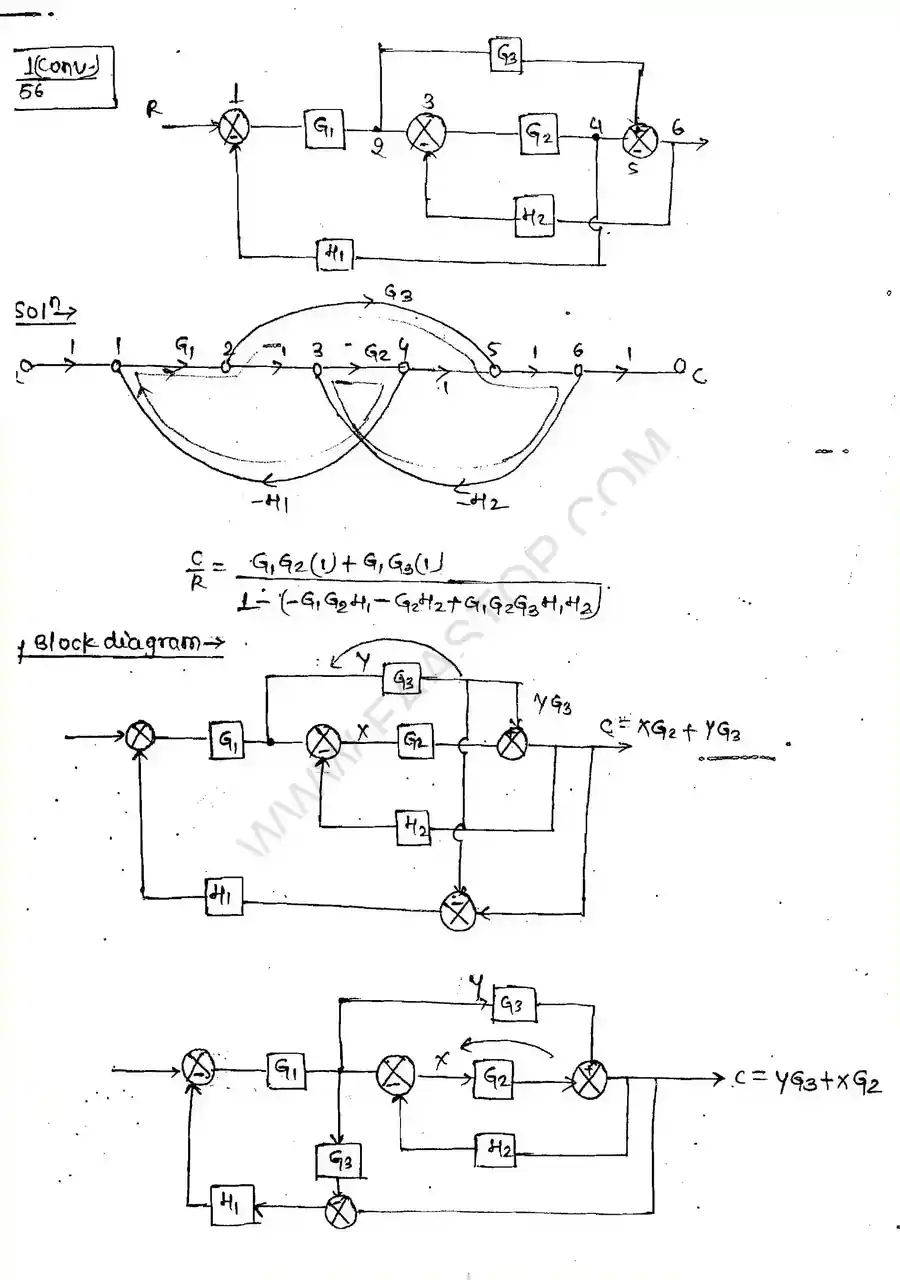

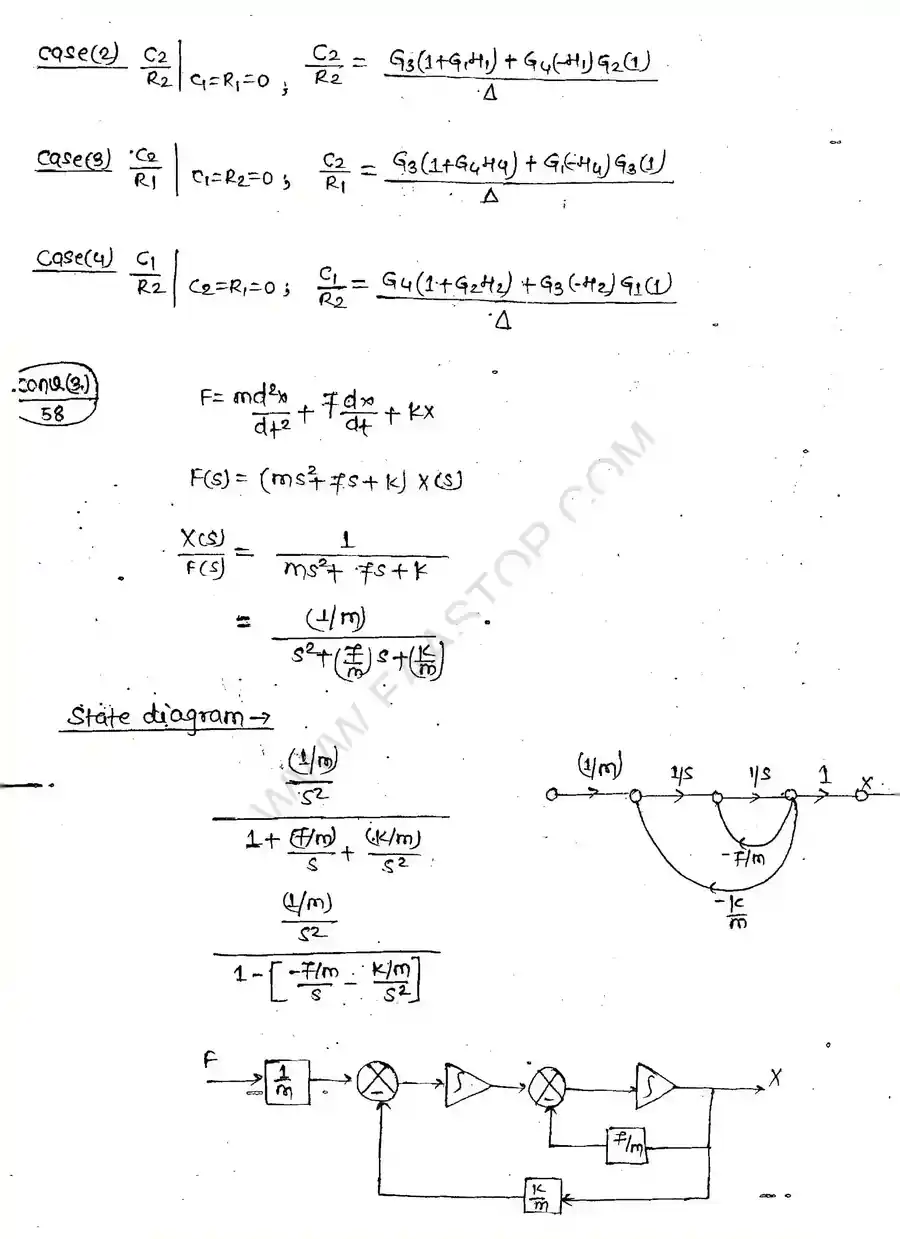

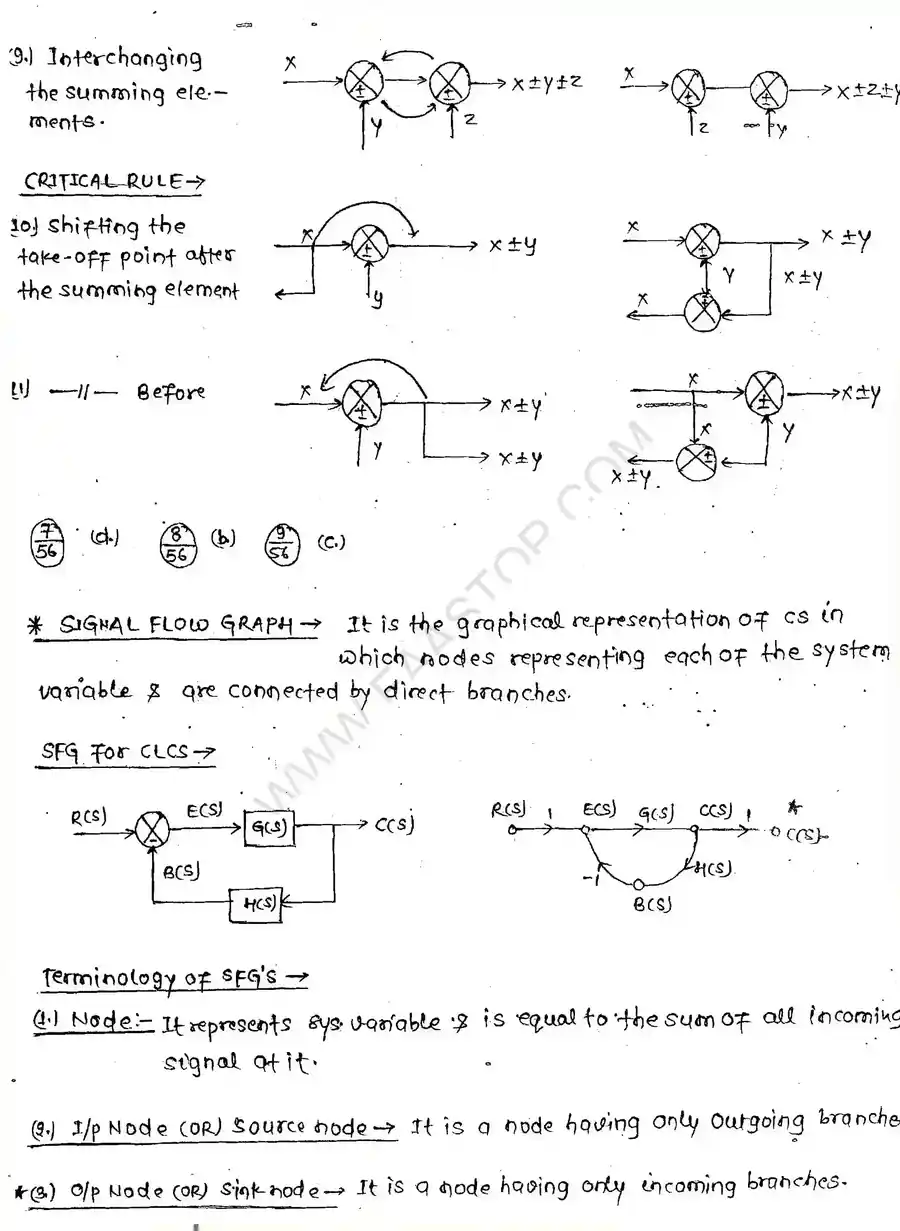

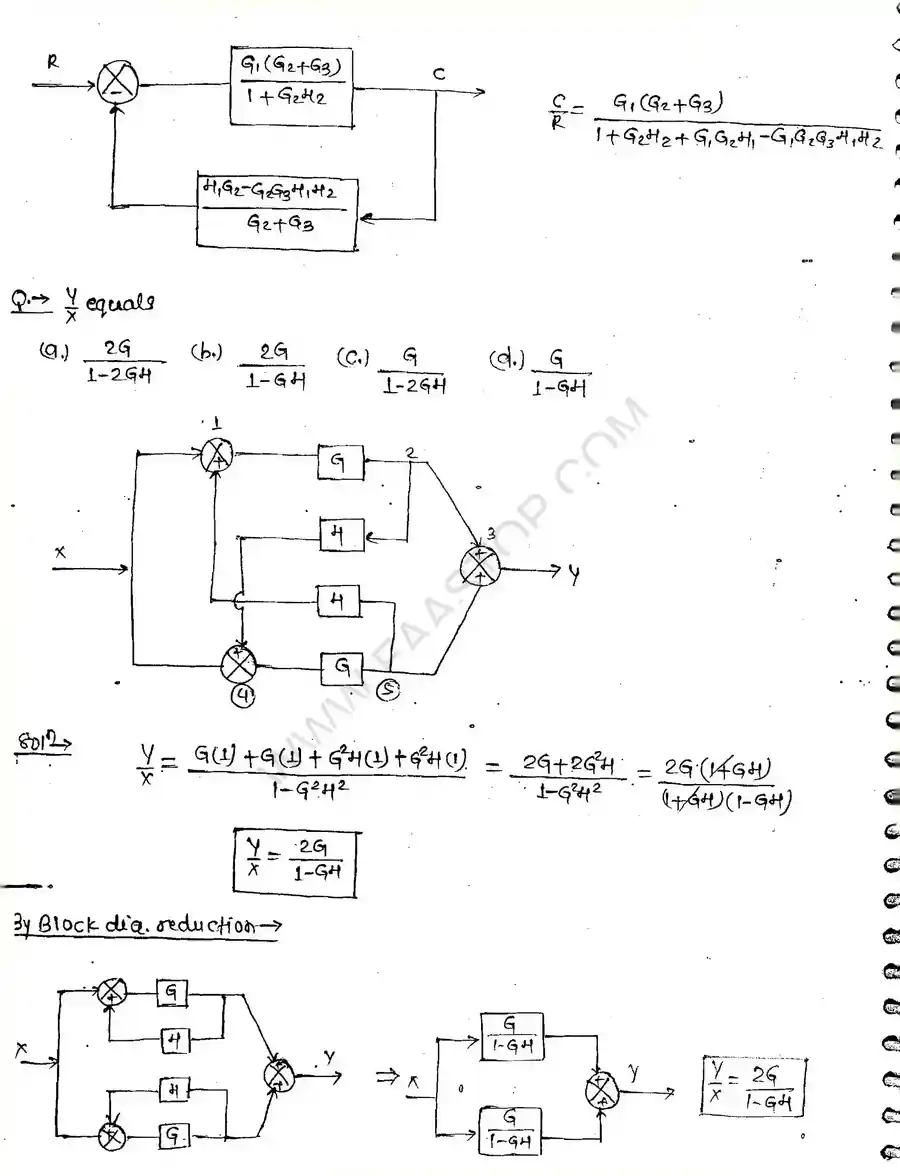

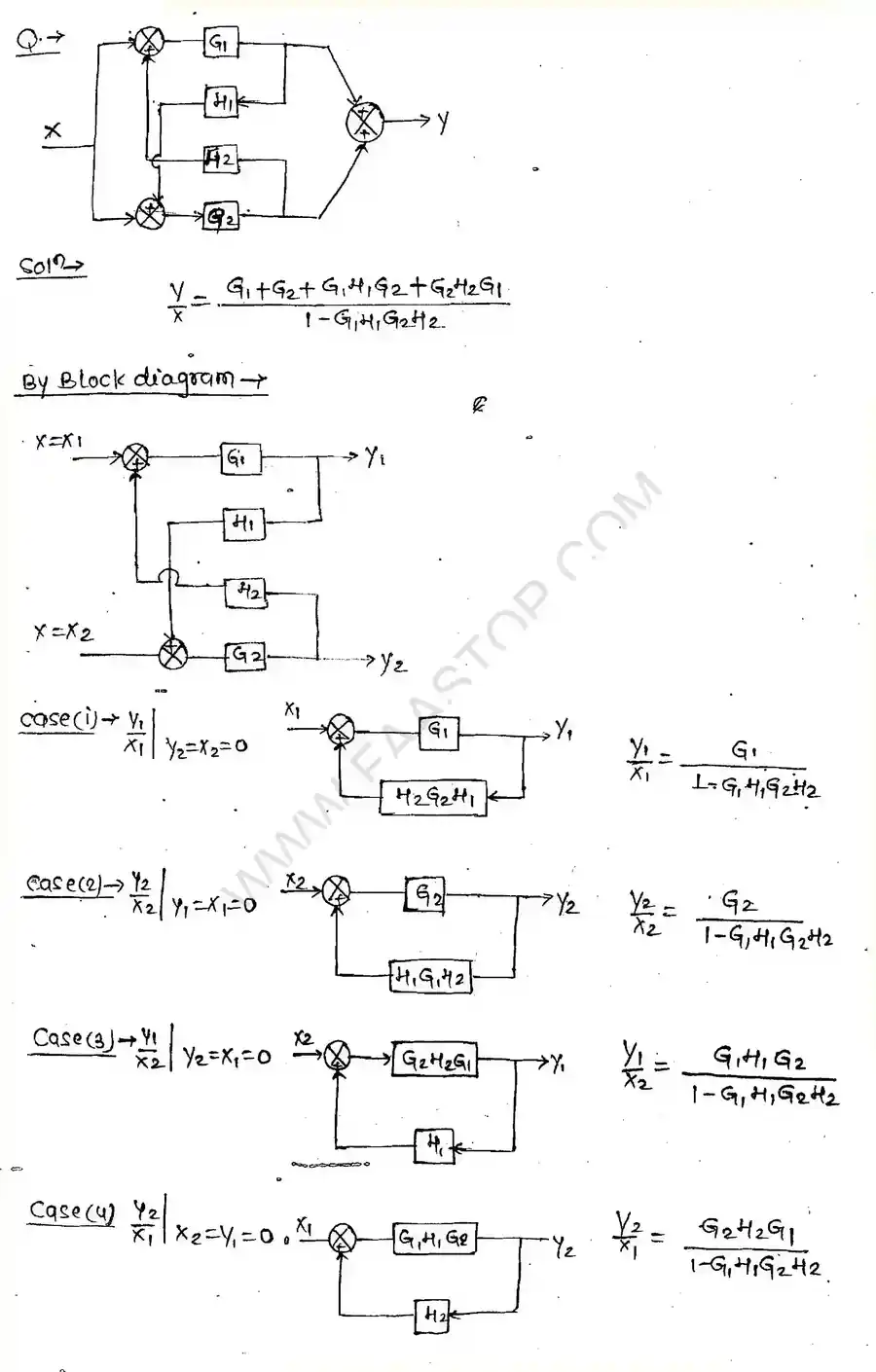

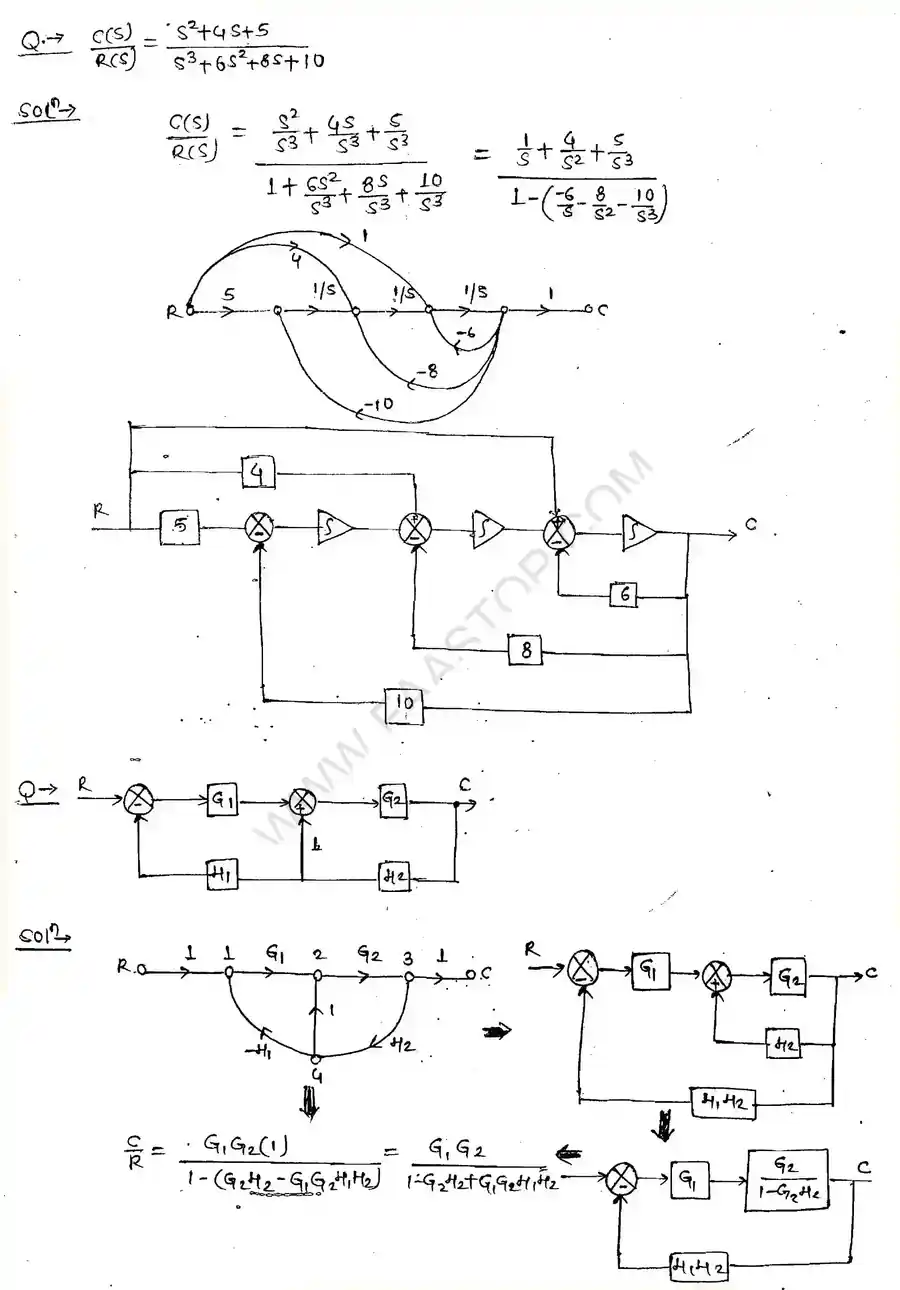

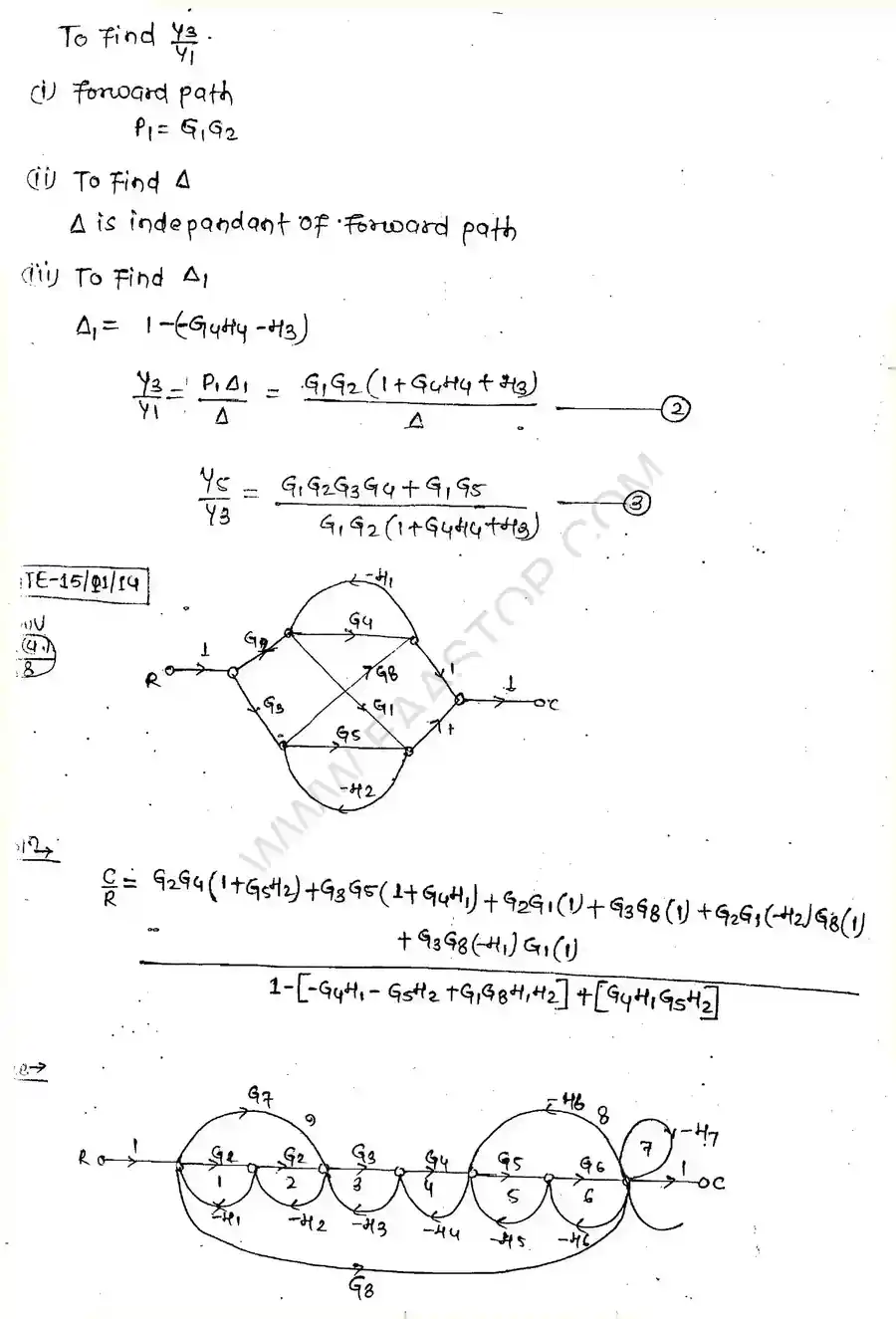

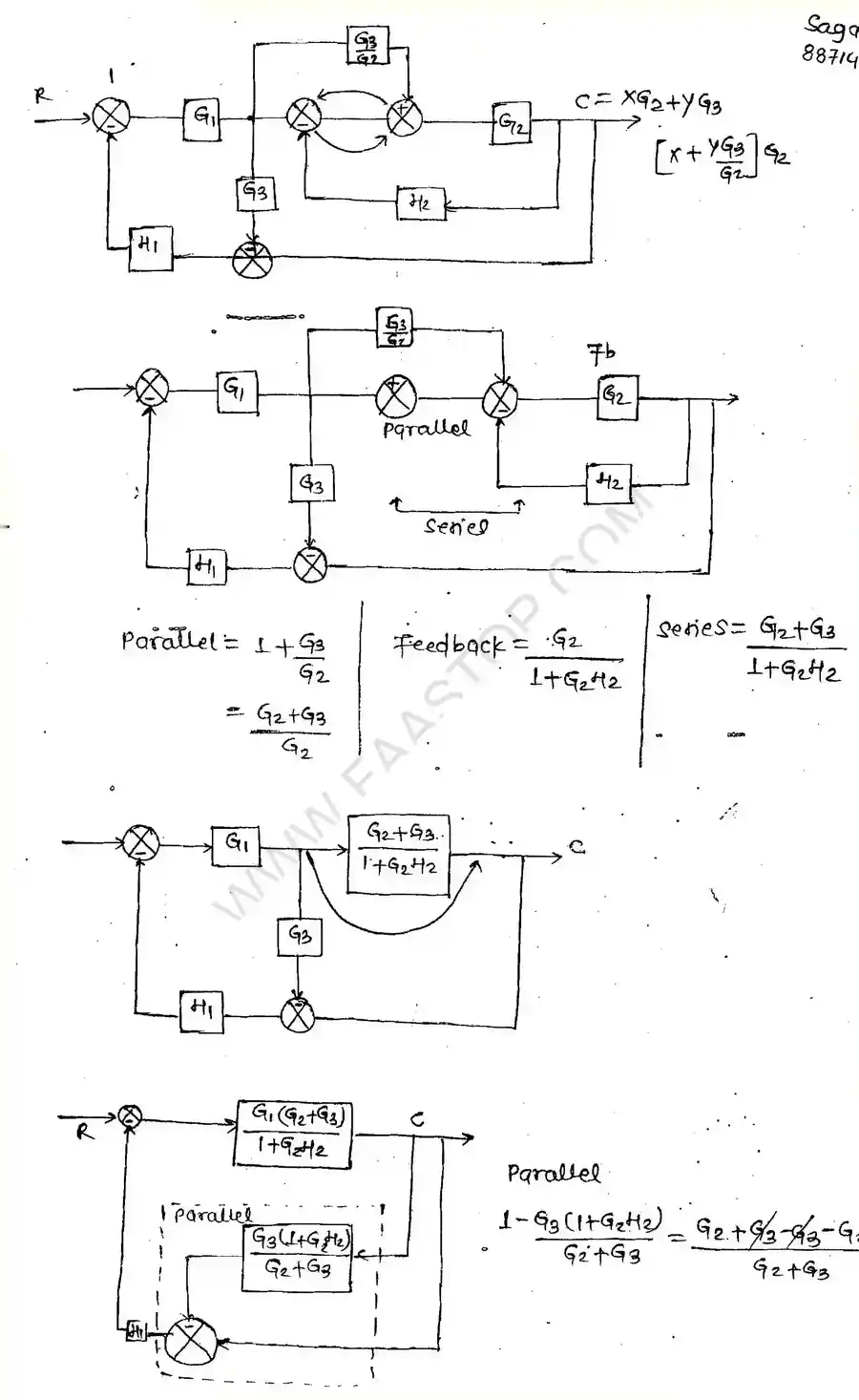

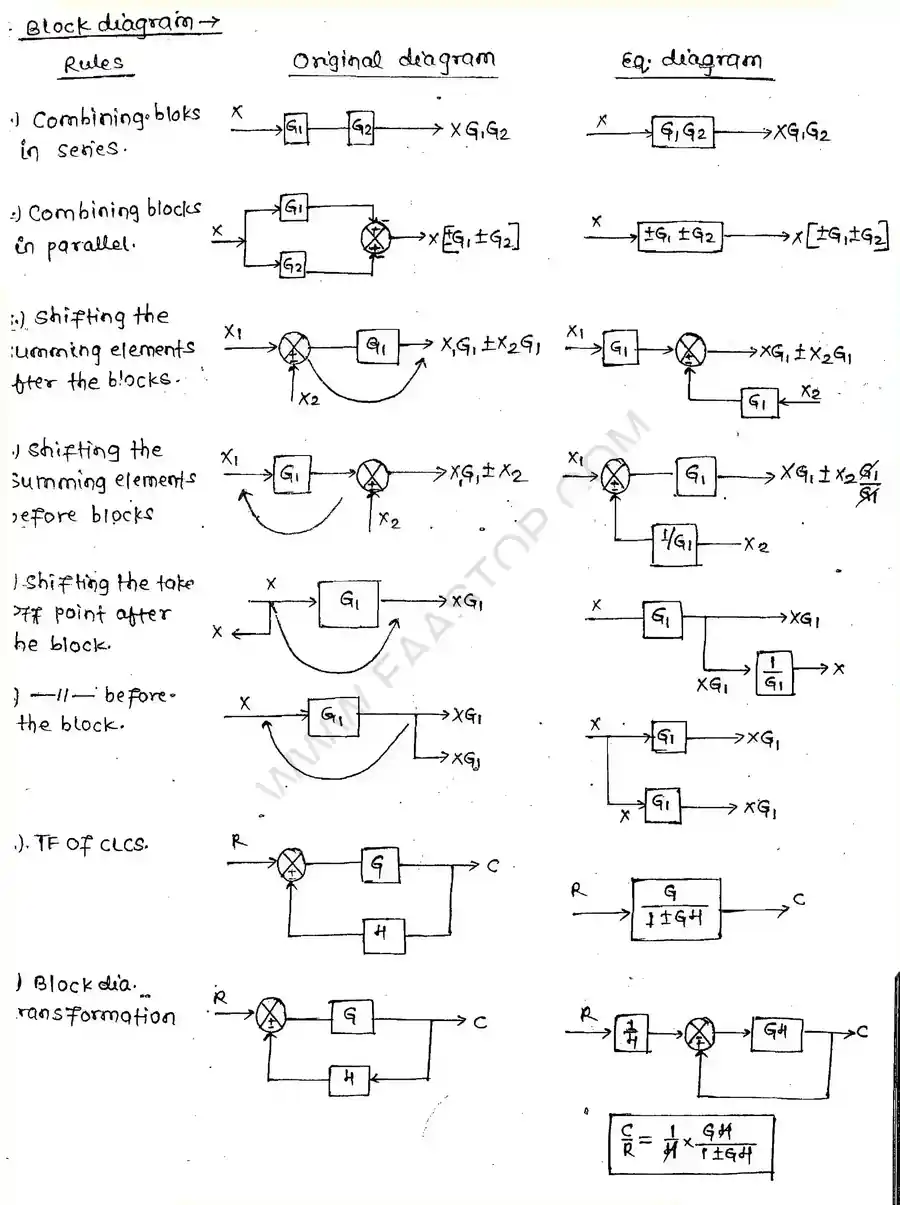

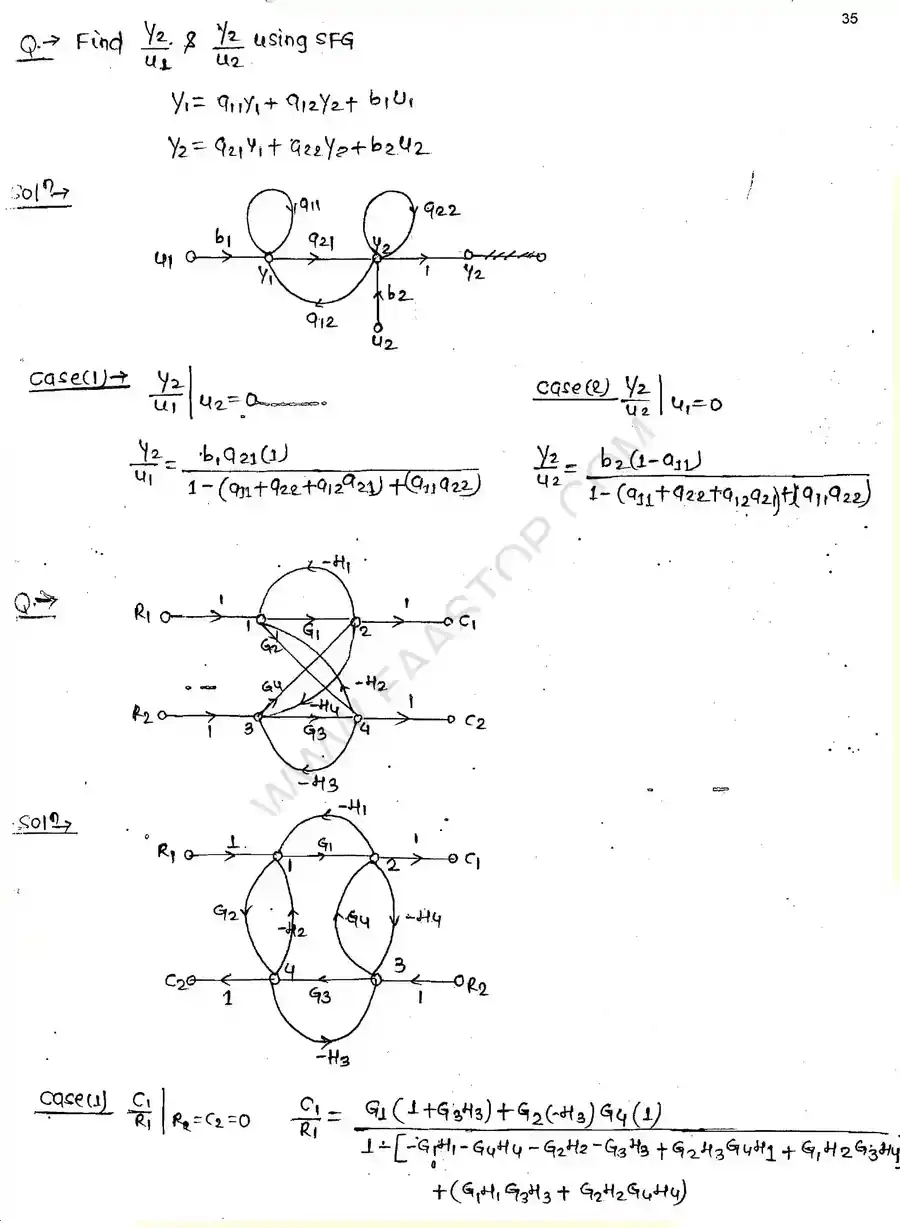

Page 1 of Block Diagram and Signal flow graph Page 2 of Block Diagram and Signal flow graph Page 3 of Block Diagram and Signal flow graph Page 4 of Block Diagram and Signal flow graph Page 5 of Block Diagram and Signal flow graph Page 6 of Block Diagram and Signal flow graph Page 7 of Block Diagram and Signal flow graph Page 8 of Block Diagram and Signal flow graph Page 9 of Block Diagram and Signal flow graph Page 10 of Block Diagram and Signal flow graph Page 11 of Block Diagram and Signal flow graph Page 12 of Block Diagram and Signal flow graph Page 13 of Block Diagram and Signal flow graph
