Bode Plot
ENGINEERING →
Electronics and Communication Engineering →
Control Systems →
CS Notes-1

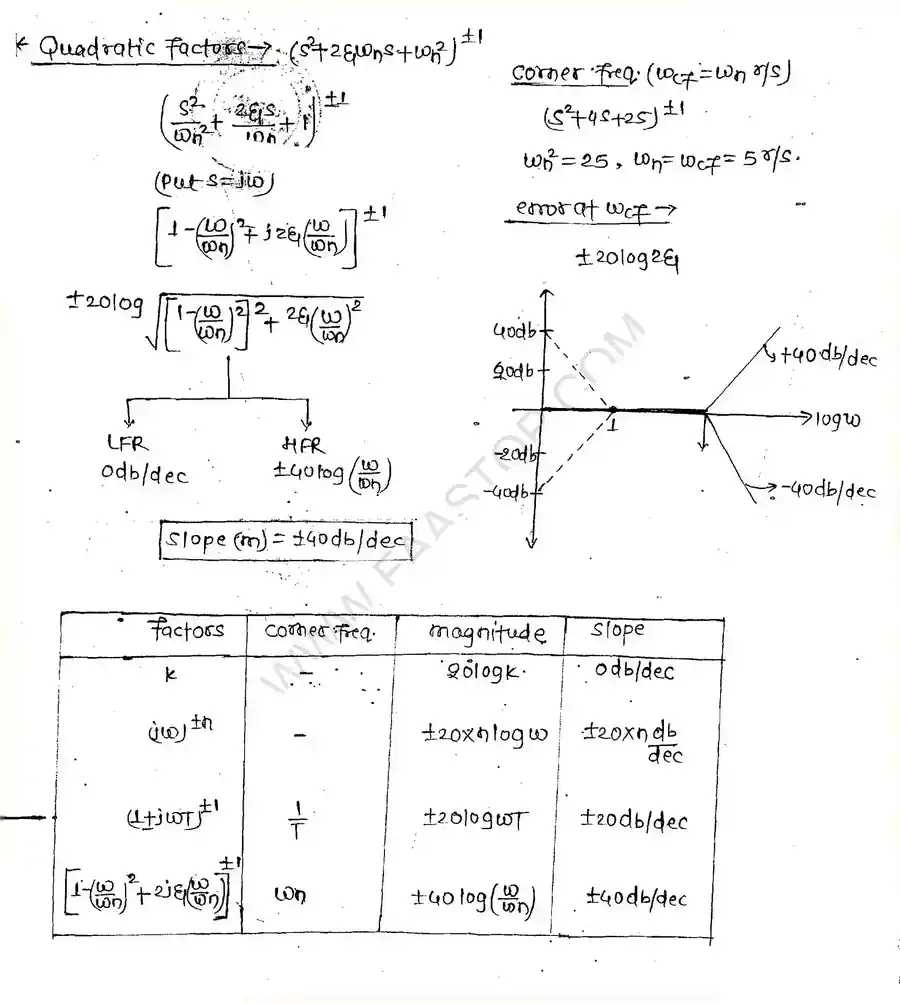

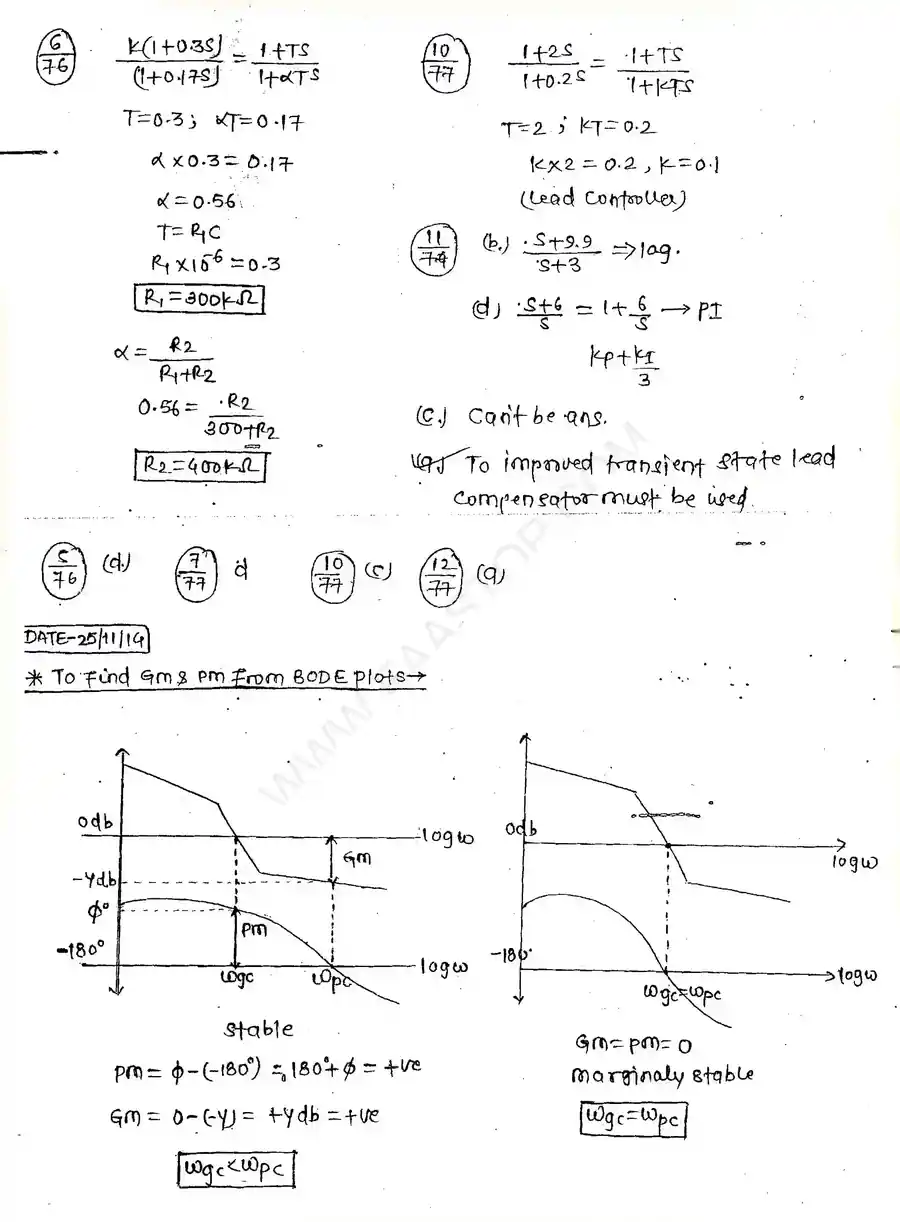

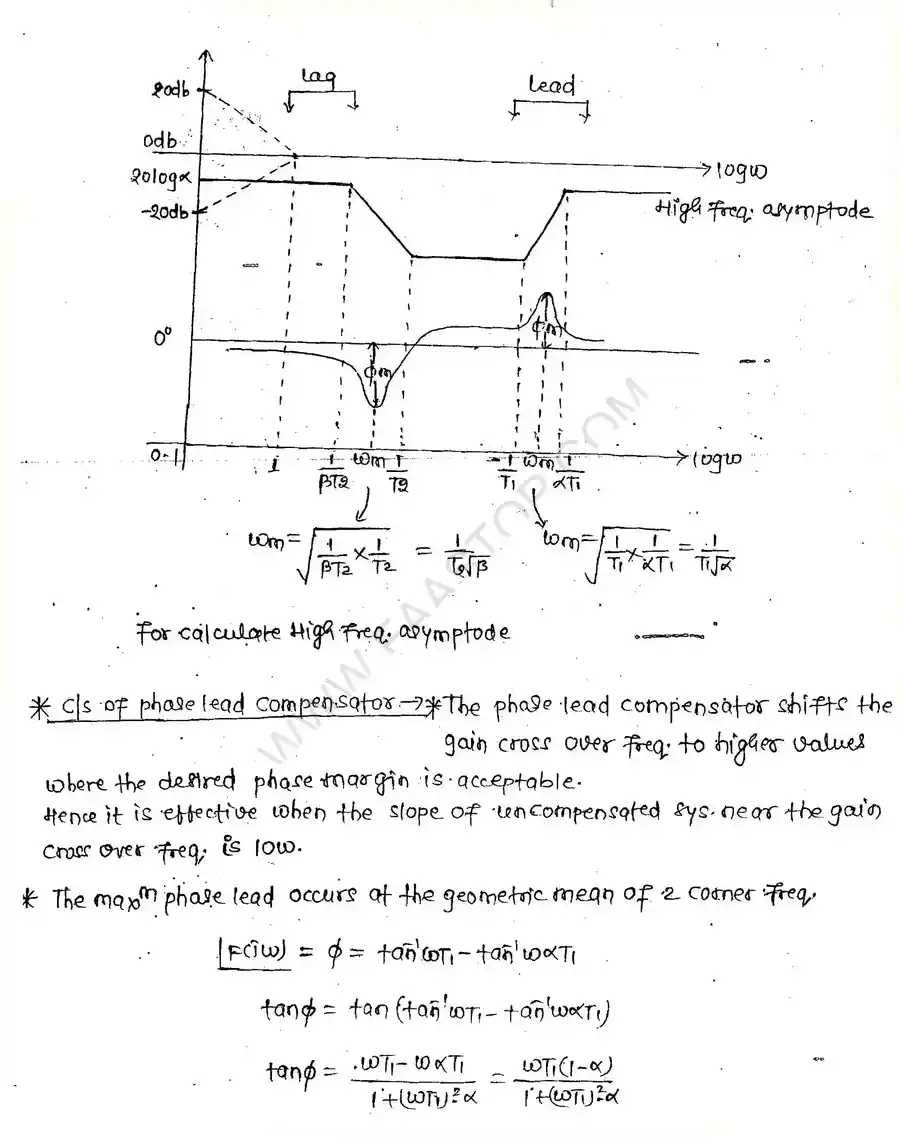

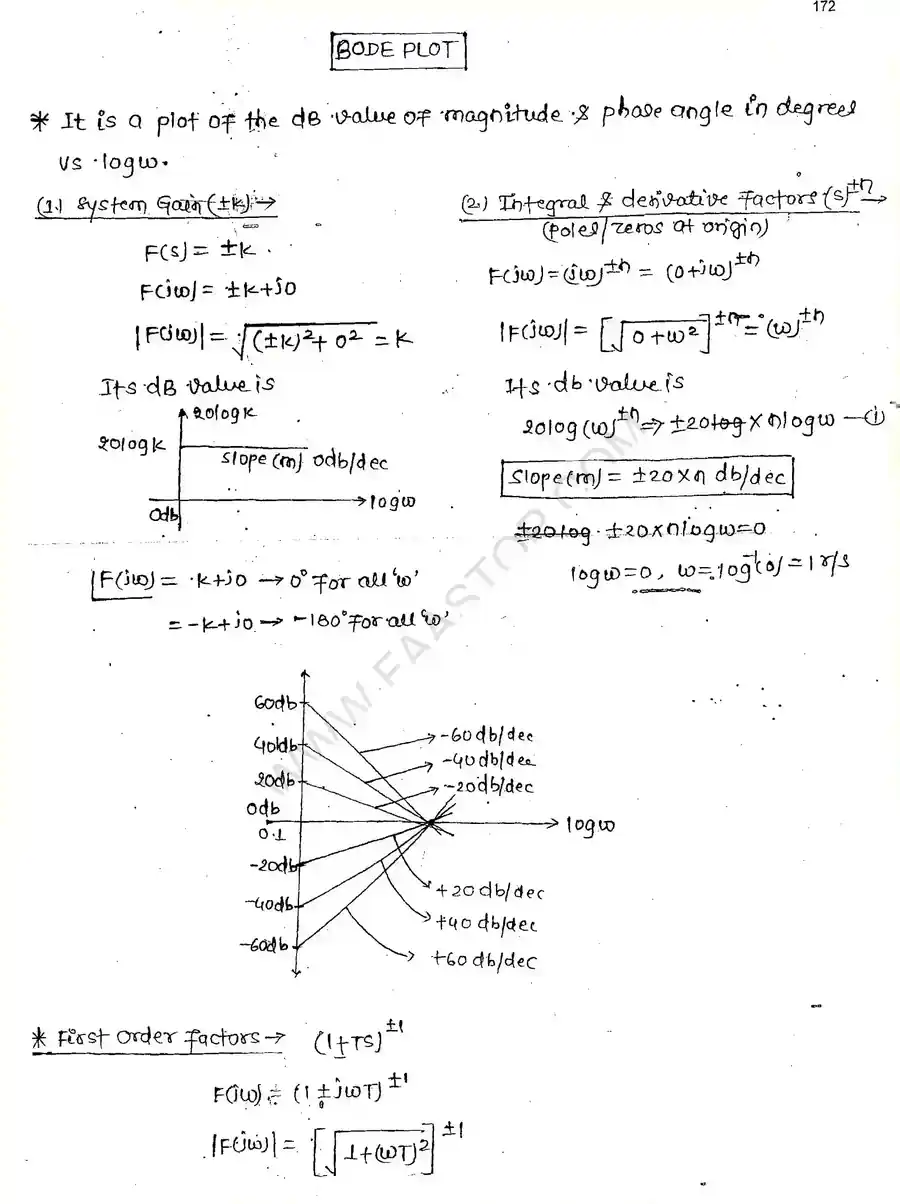

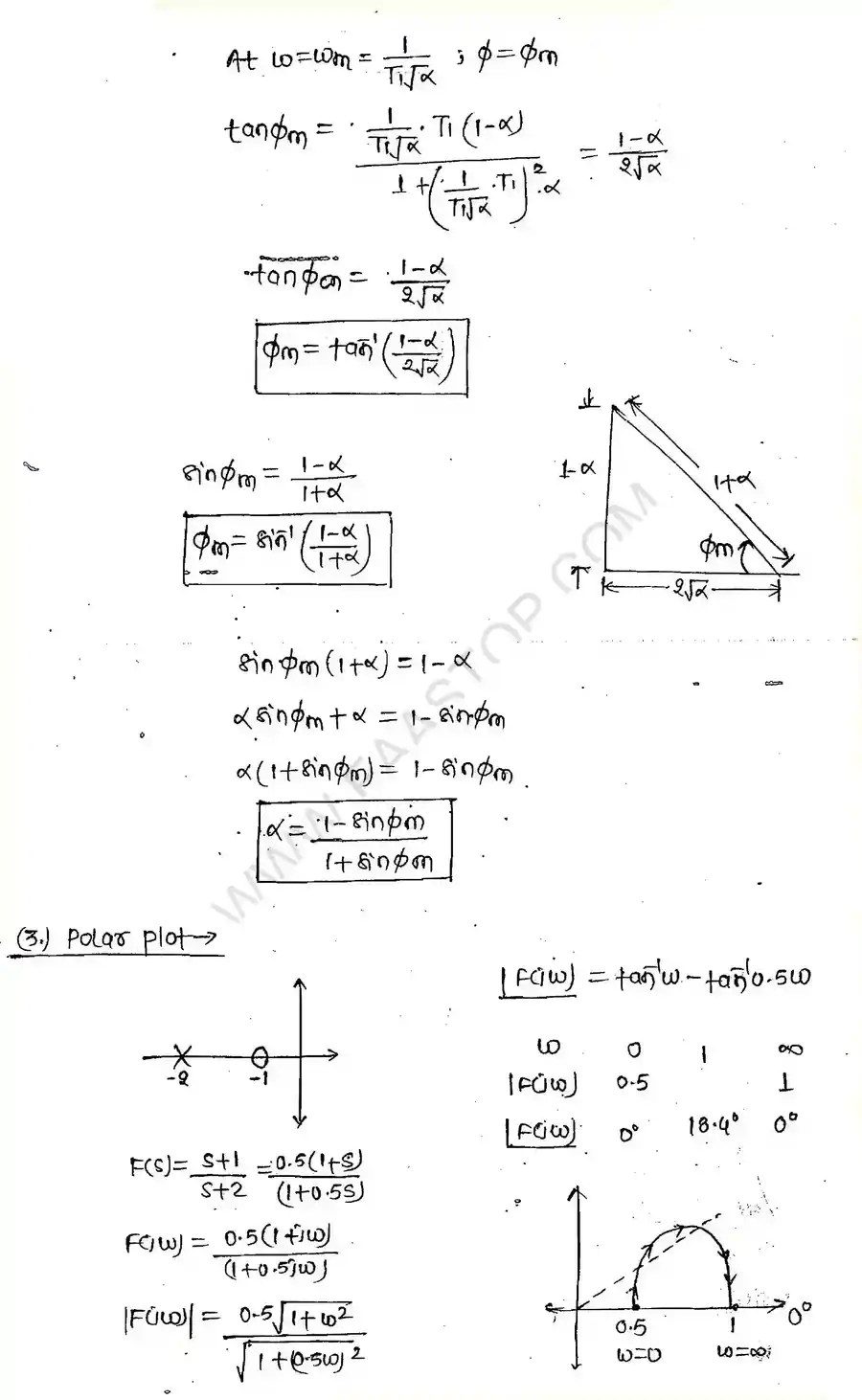

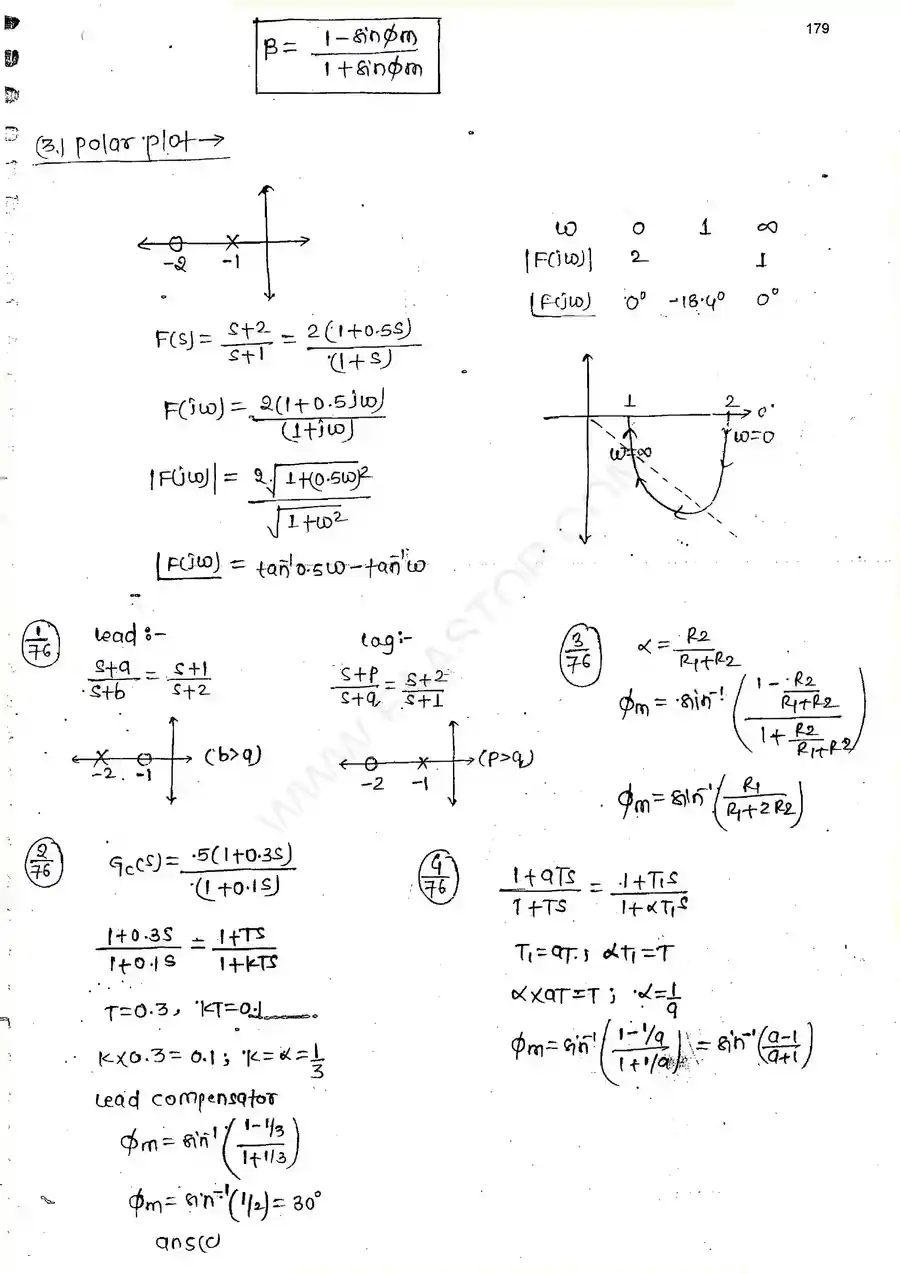

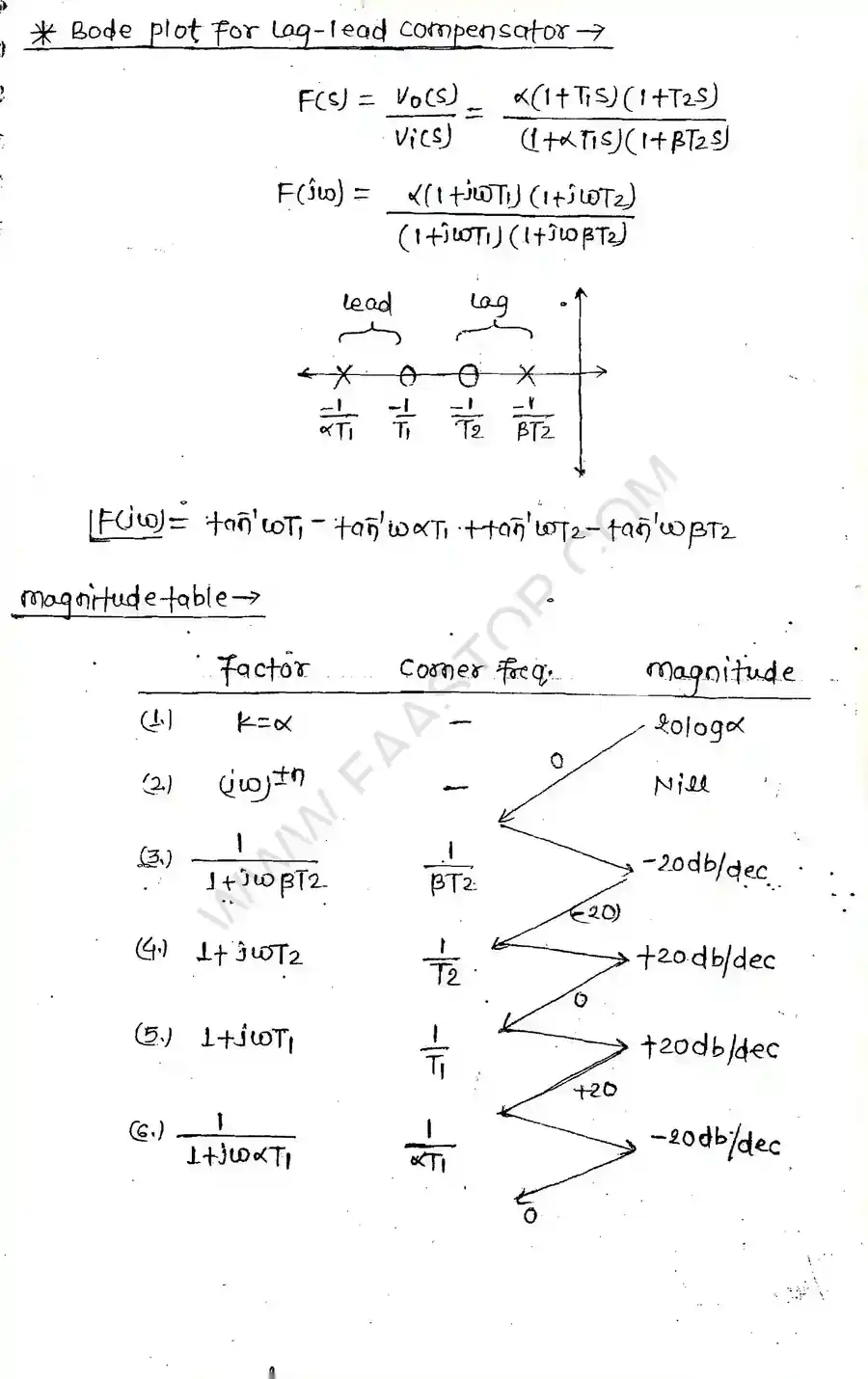

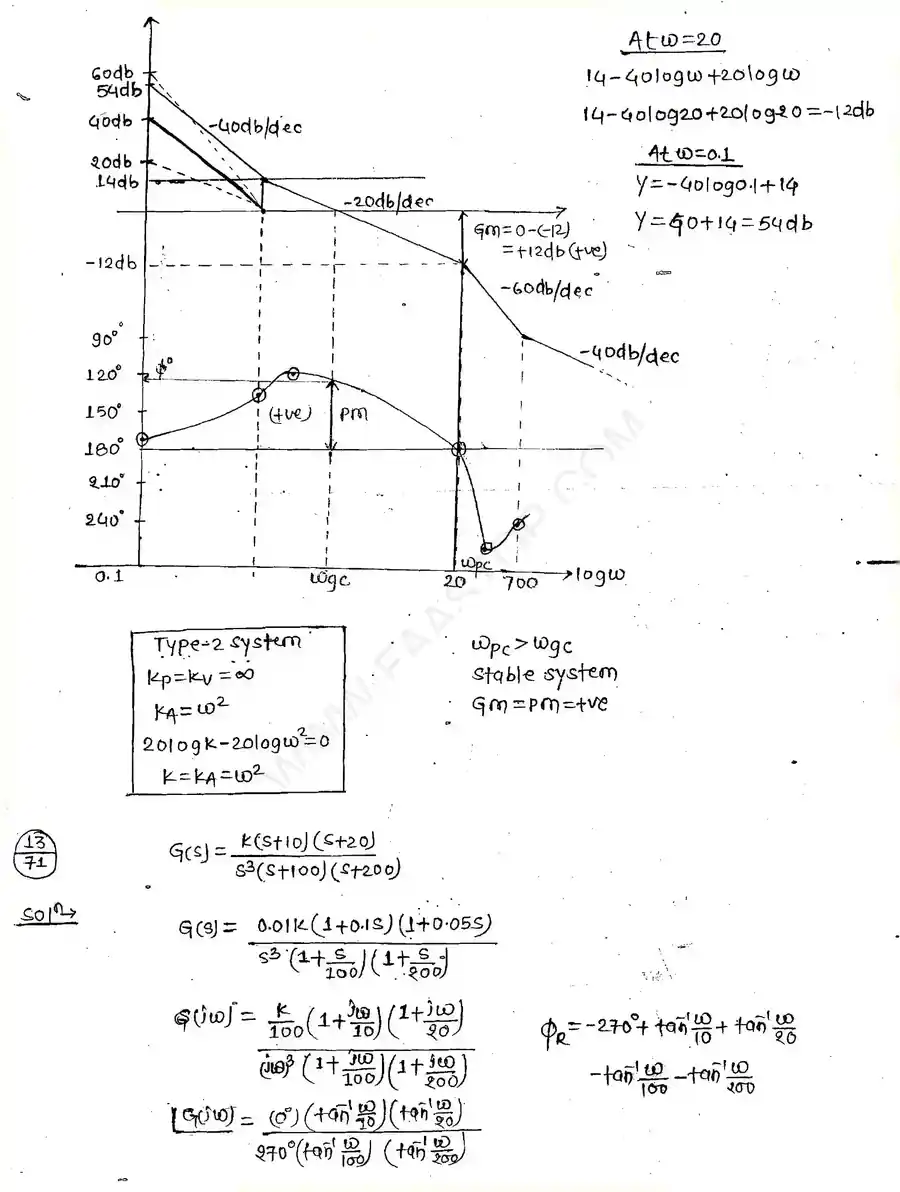

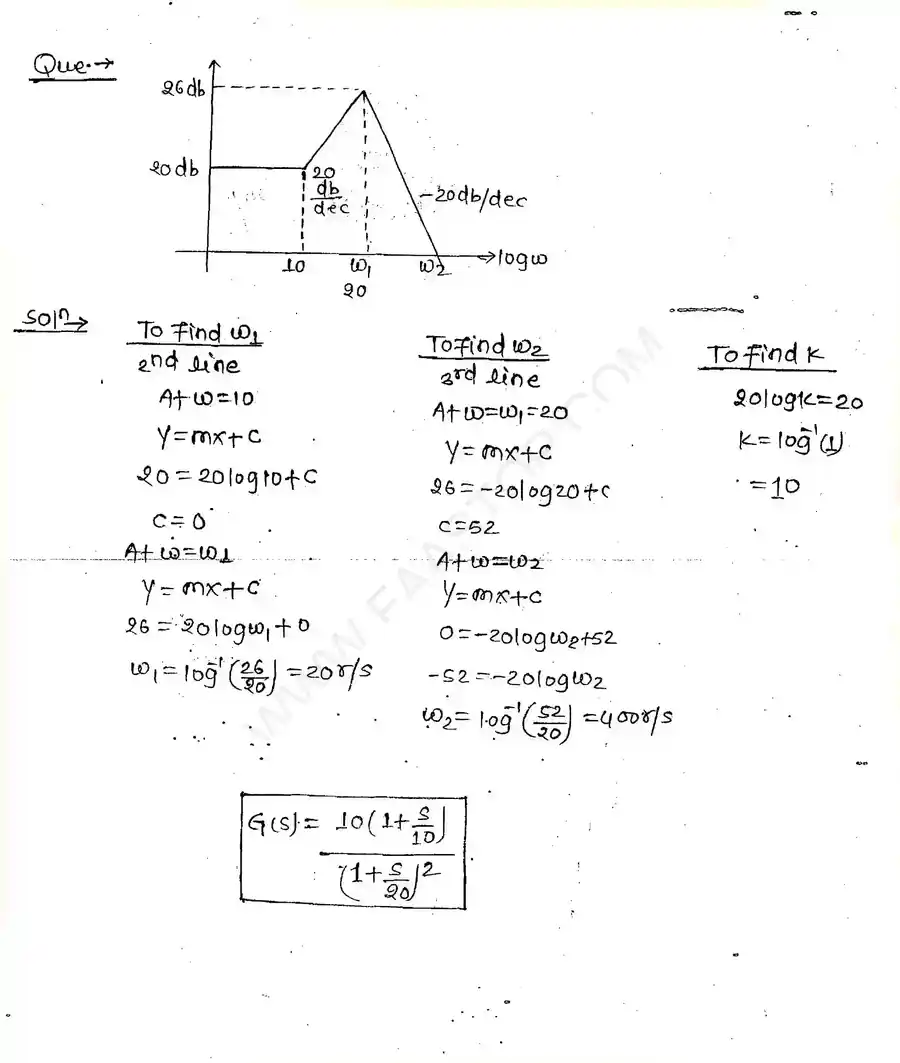

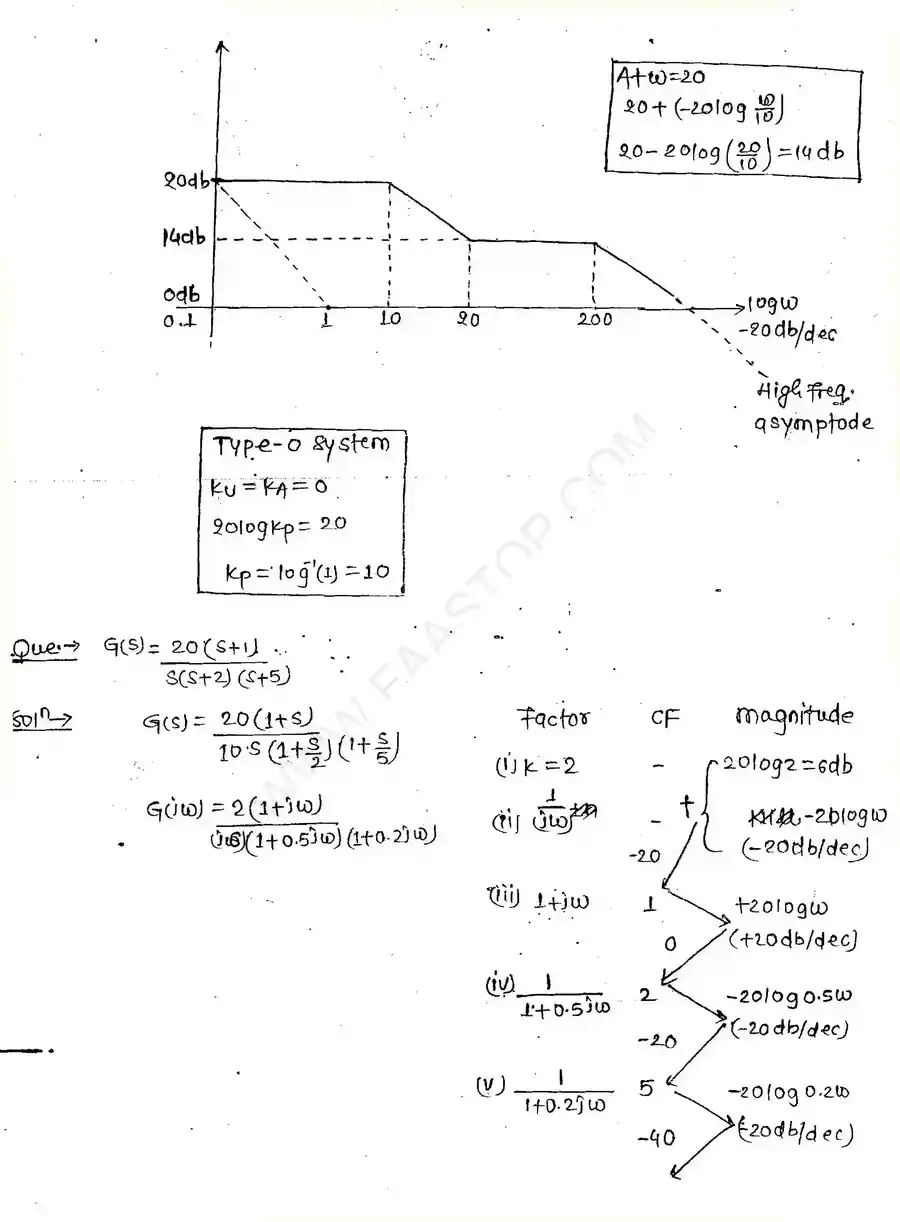

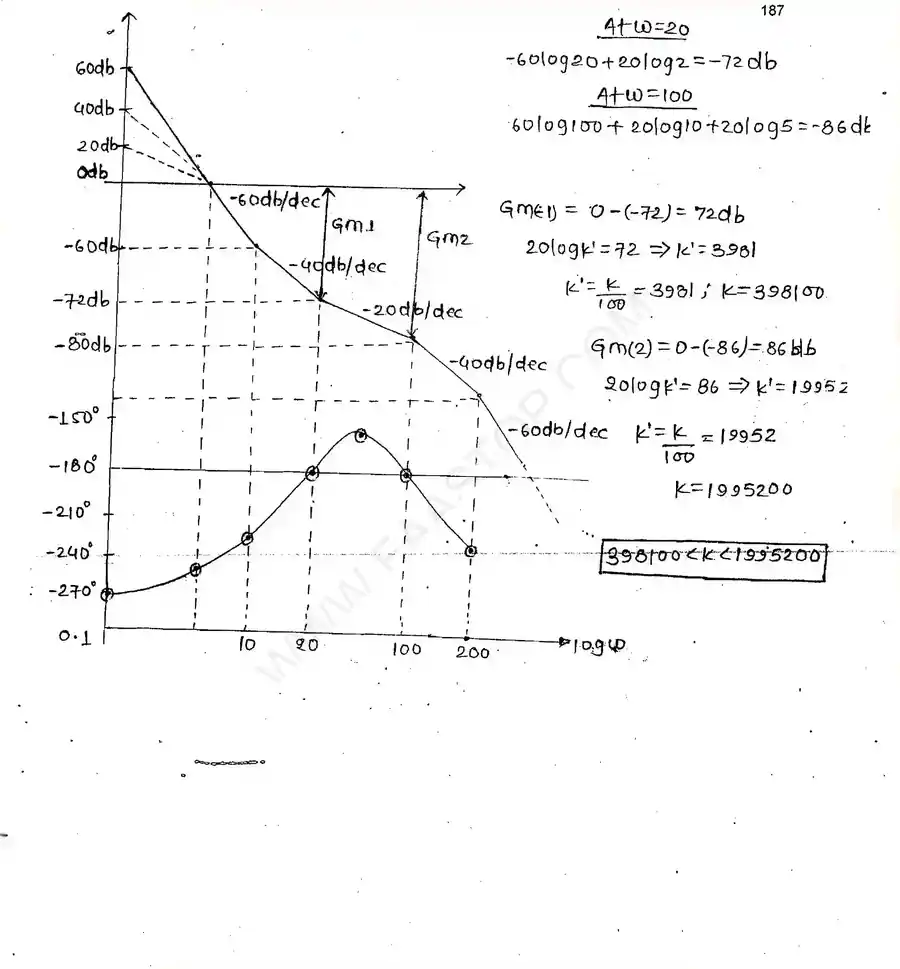

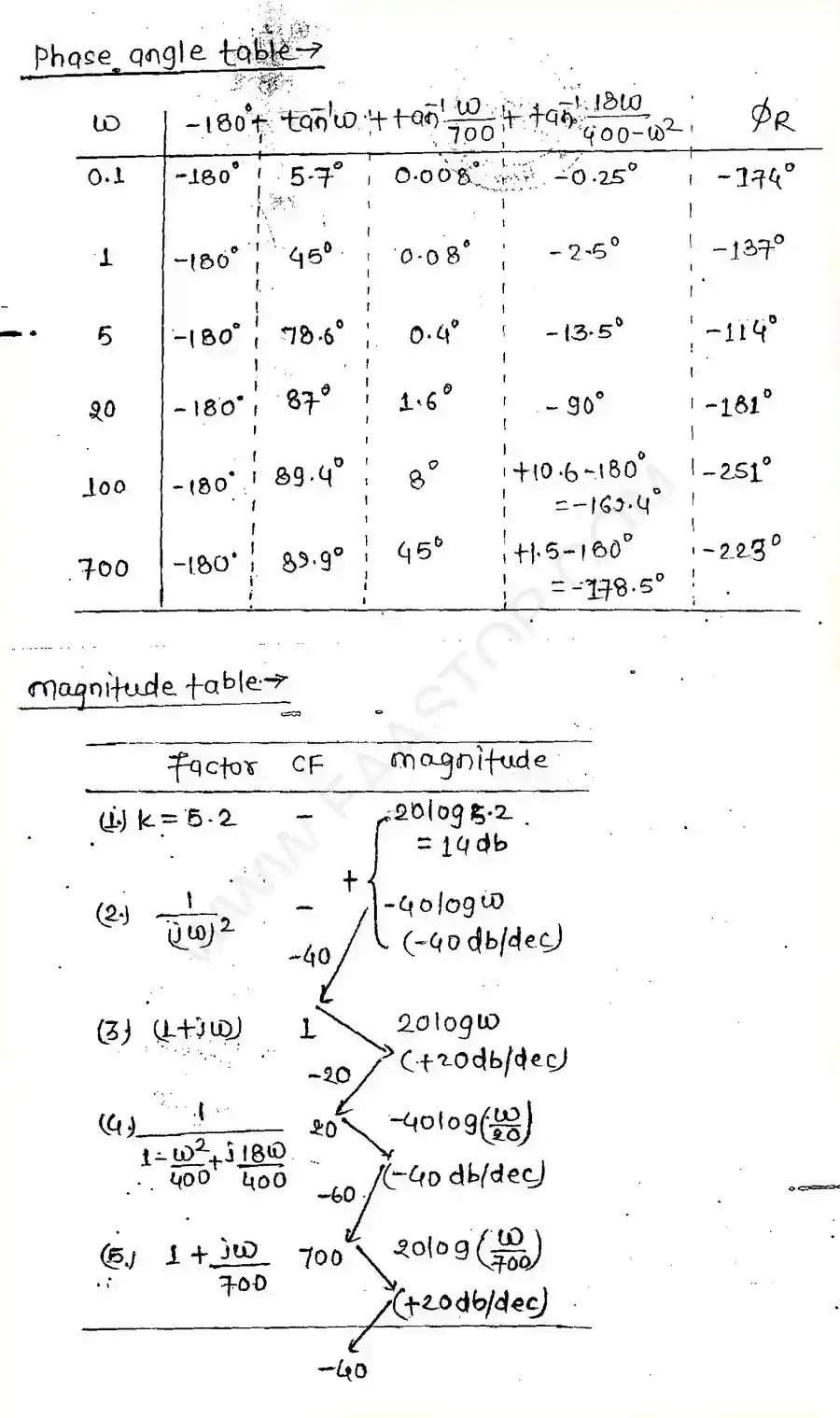

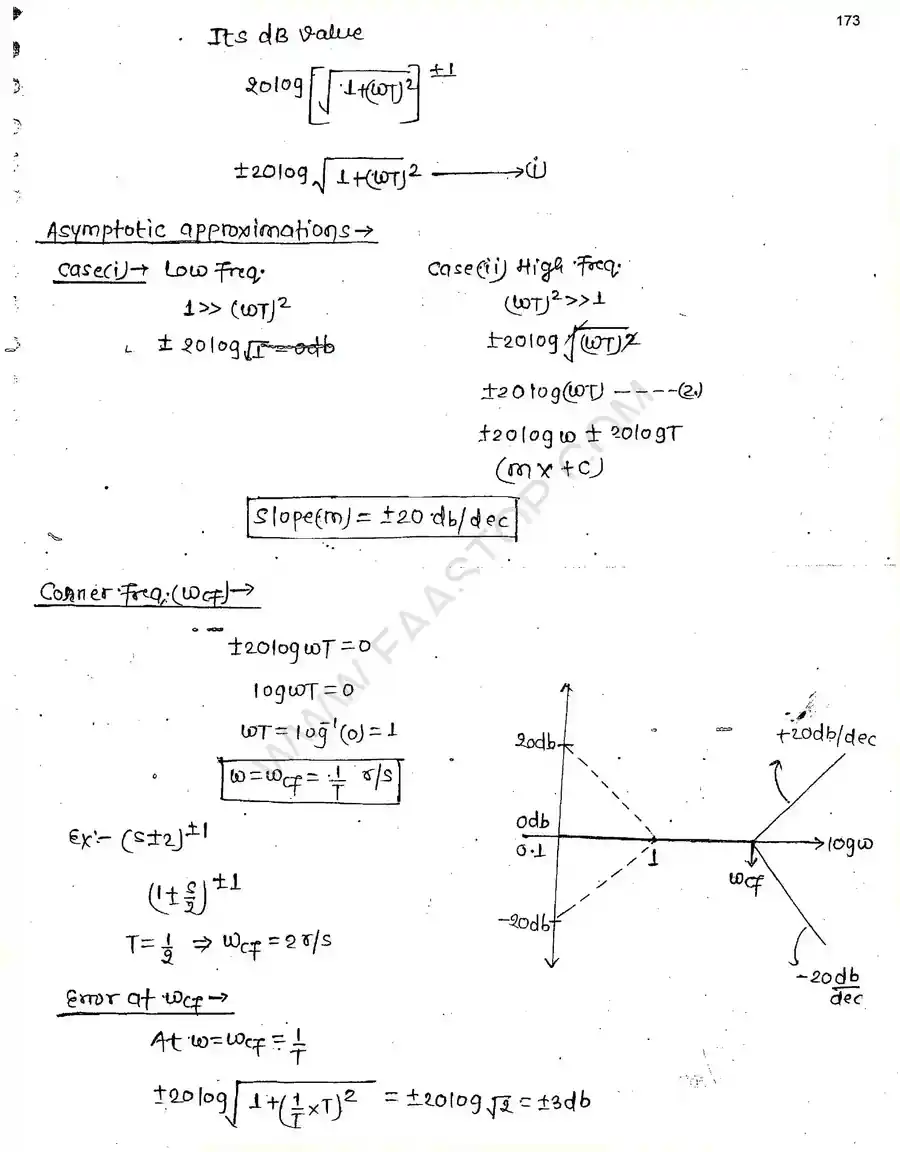

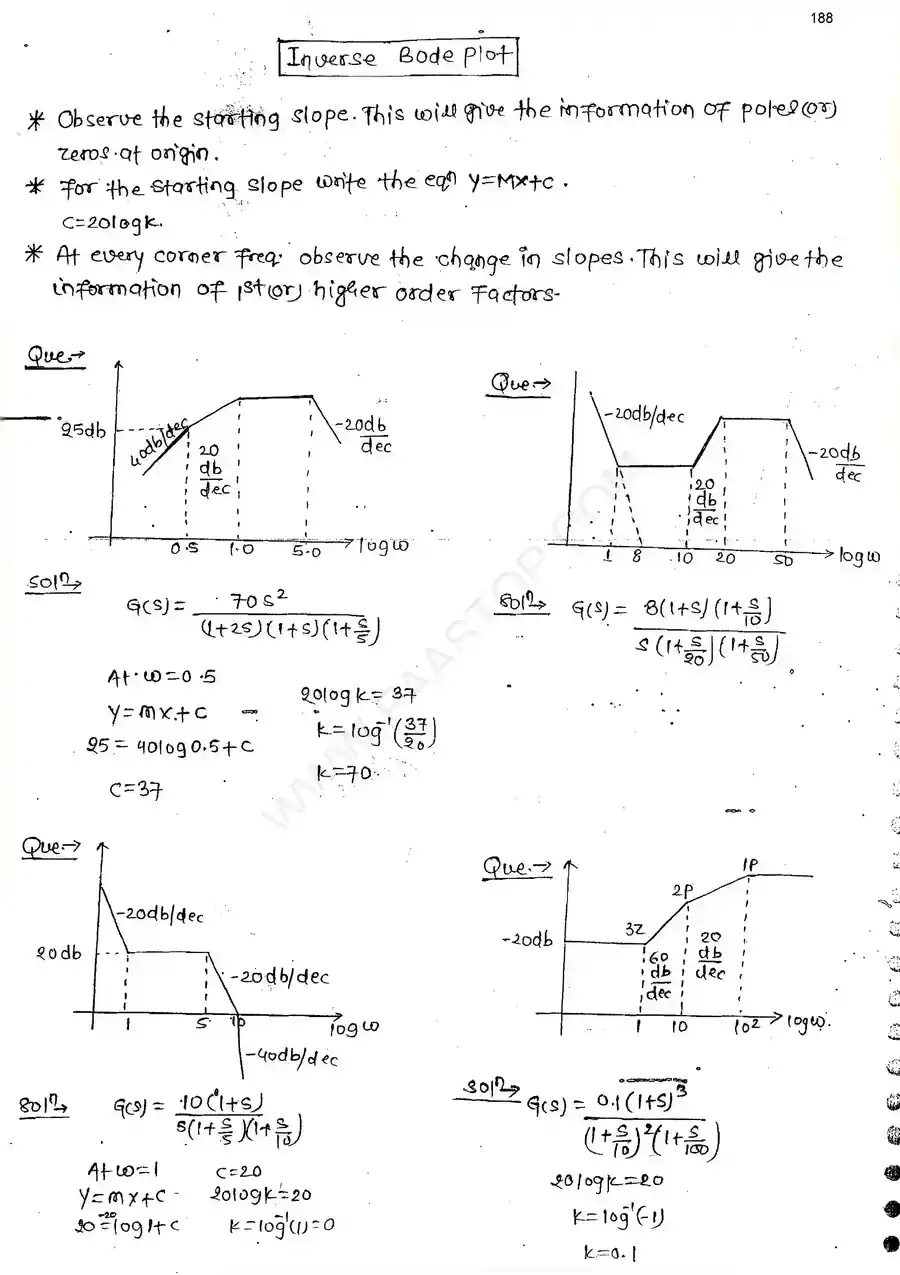

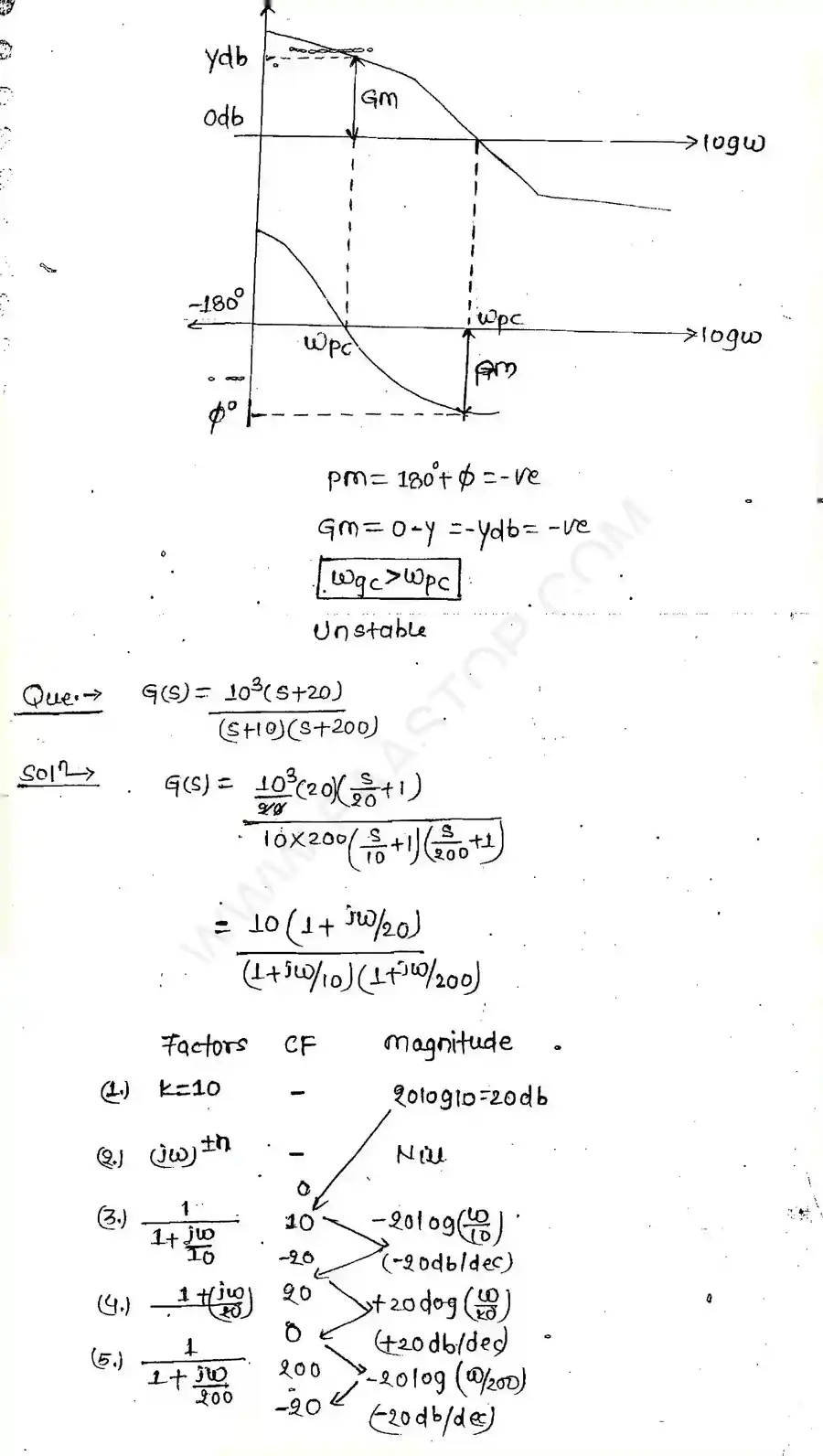

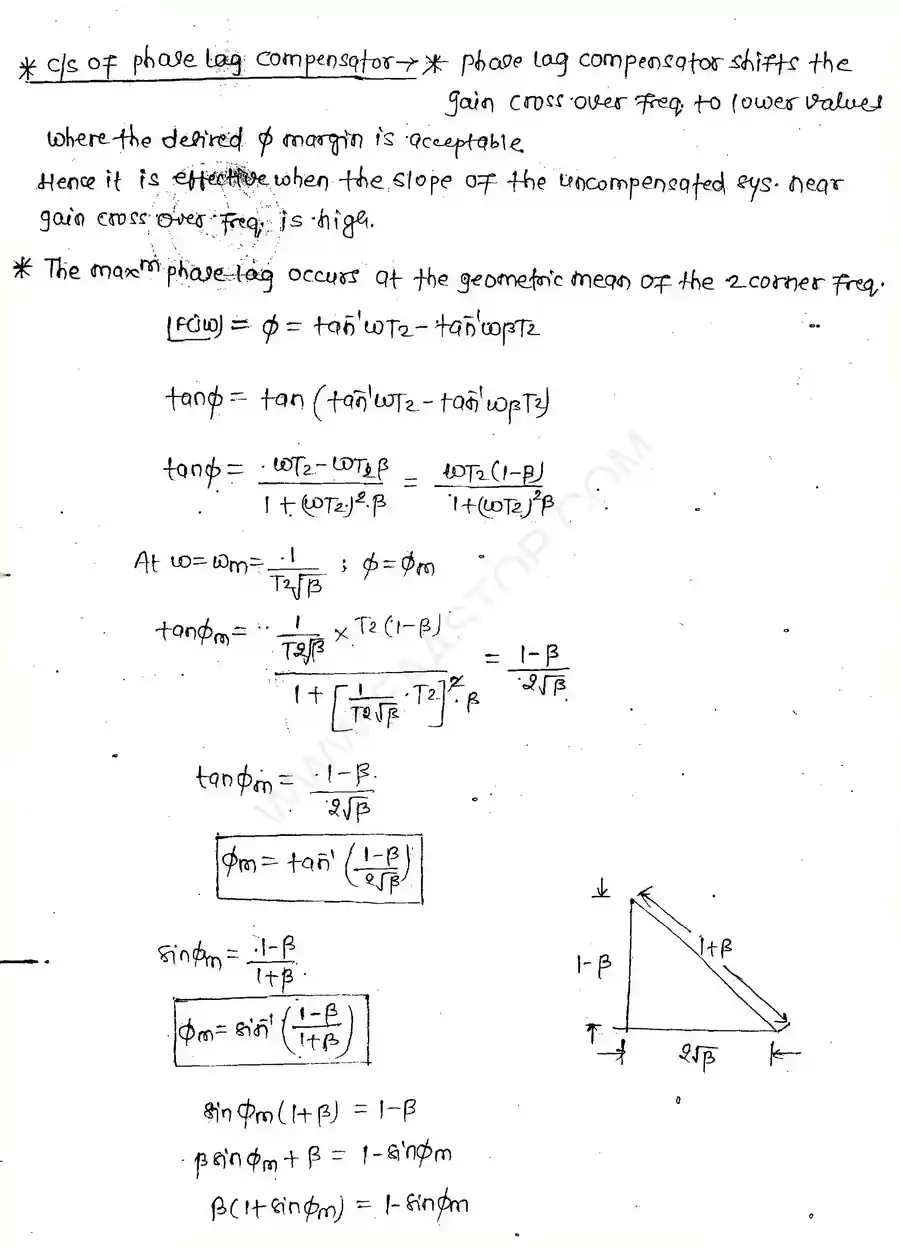

Read handwritten notes for Bode Plot. This chapter contains 19 pages of handwritten study materials.
19
Total Pages
100%
Free Access
